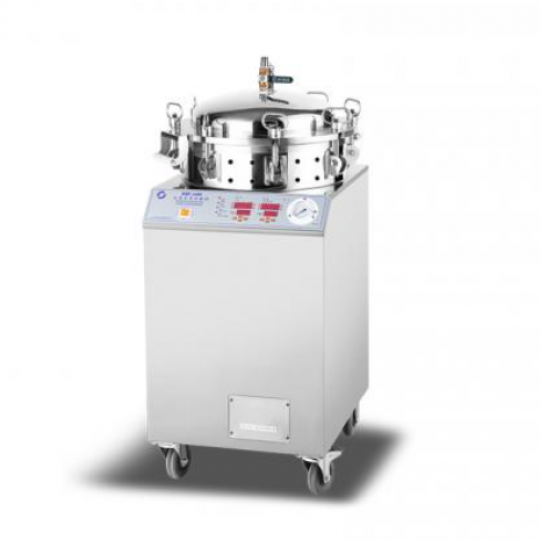

ZM-100 Inverted Pressure Sterilized

ZM-100 Inverted Pressure Sterilized

Inverted Pressure Sterilized
Model: ZM-100
Brand:GBPI - China
ZM-100 Inverted pressure sterilizer boiler is used for sterilization and high temperature test of packaging materials (including adhesives and printing ink) in the industries of packaging, plastic films, food, medical units, inspection agency, research institute etc.

Ứng dụng:

Inverted Pressure Sterilized
Model: ZM-100
Brand:GBPI - China
I. Function & Application:
ZM-100 Inverted pressuresterilizer boileris used for sterilization and high temperature test of packaging materials (including adhesives and printing ink) in the industries of packaging, plastic films, food, medical units, inspection agency, research institute etc.
II. Standards : GB 150.1-2011, GB/T 10004-2008, GB 4793.4-2001, YY1007-2005.
III. Specifications
- Disinfection bucket specification:  φ400mm,H 500mm
- External Specifications: 600×500×1150mm
- Storage bucket volume:  50L
- Work pressure: 0~0.22Mpa(Saturated vapor pressure)
- Self-control pressure:  0.23MPa
- Water pressure ≥0.32 Mpa
- Back pressure: 0.14~0.165 Mpa
- Sterilization temperature: 100~135℃
- Time setting range: 1min(分钟)〜 99.59min(分钟)
- Working power: AC220V 50Hz
- Power: 4.5kw±10%
- Weight: 85Kg
IV. Working principle Counter-pressure method:
During the cooling process after sterilization of tested items (bags), the temperature inside the bag remains higher than outside the bag in the tank, and this can cause pressure difference and make the bag burst. To prevent the bursting, we can inject balancing pressure (counter-pressure) air during the cooling process to keep pressure in the tank and eliminate the pressure difference while temperature decreases gradually.
V. Features
1. Automatic rising temperature, automatic keeping temperature, automatic timing;
2. Inverted Pressure Sterilized function;
3. Unique chamber design can thoroughly sterilize items; Counter-pressure method can prevent sample bags from wrinkling or breaking.
4.Water shower cooling and air cooling, with high efficiency and good effect, fast heating and cooling.
5. Control of water level, time and temperature; multiple safety protection against water shortage and over temperature, and auto power off.
6. Five grades of safe measures, efficient and reliable.
