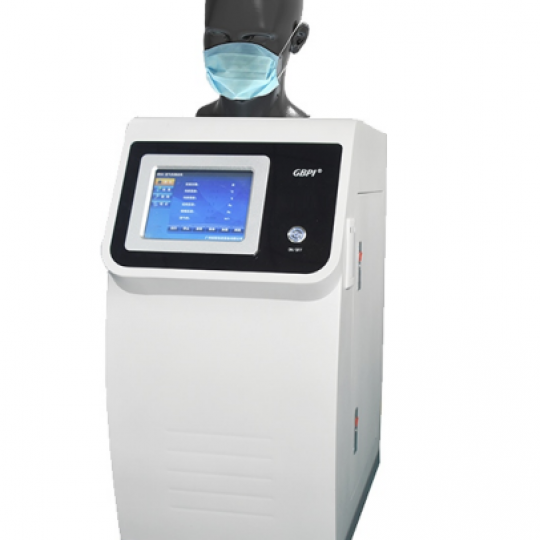

Disposable Medical Mask Respiratory Resistance Tester
Model: GBN702
Brand: GBPI - China
The respiratory resistance tester is suitable for determining the inhalation resistance and exhalation resistance under the regulations of respirators and masks, and for the related testing and inspection of ordinary mask products by the national labor protection equipment inspection agency manufacturer.
Disposable Medical Mask Respiratory Resistance Tester
Model: GBN702
Brand: GBPI - China
Technical Parameters
- Flowmeter range: 0L/min〜100L/min
- Flowmeter range accuracy: ±2%
- Micro-pressure measuring range: -1000Pa〜1000Pa
- Micromanometer accuracy : 1Pa
- Pumping capacity of suction : Not less than 100L/min
- Ventilation: Constant (85±1)L/min
- Power Supply: AC220V,50Hz
Standard: GB2626-2006,GB/T32610-2016
Features
1.The instrument consists of an air source that can adjust the flow rate, a human head mold specified in the standard, two intubation systems for inhalation and exhalation, and a respiratory resistance measurement system.
2. The flow sensor has high sensitivity and has a very small starting flow.
3. The flow sensor chip uses a thermal mass flow meter, which does not require temperature and pressure compensation, ensuring high-precision measurement of the sensor.
4. Multiple sensors are integrated on a single flow sensor chip, which greatly improves the range ratio of the sensor.
5. The zero point stability of the flow sensor is high, with full range and high stability, high accuracy over the full range, excellent repeatability, low power consumption,low pressure loss and fast response speed.
6. The data logger uses a graphic dot matrix LCD with a resolution of 128×64 and a full Chinese interface, which is easy to operate.
7. the data logger has 4M memory for measurement value recording.
8. The micromanometer sensor uses a two-wire system, with high accuracy and good stability; it is safe and reliable to use an explosion-proof design.
9. The range and zero point of the micromanometer sensor are continuously adjustable, the damping is adjustable, there is no mechanical moving part, and the maintenance workload is small.
10. The whole instrument adopts special gas path conversion elements, which ensures the convenient and fast conversion of the two-pipe system of exhalation and inhalation. 11. Applicable to the latest national standard requirements, compatible
Flexible Packaging Film Coefficient Of Friction Tester COF Testing
Model: GM-4 Coefficient of
Brand:GBPI
With the improvement of people's living standards, consumers have higher demands on the quality of food, clothing, food, beverages, medicines, automobiles and other products, because the quality of their products is closely related to people's lives. It has become the focus of attention of many enterprises and consumers. Among them, material quality control is an important aspect of product quality. In order to make material suppliers have a clear understanding of the quality of their own products, Guangzhou Standard International provides sample commissioned testing services to the community.
Salt spray test chamber
Model: GB-OSH-60
GBPI - China
FunFunction
Salt spray test chamber is used for the quality inspection and corrosion resistance test of a variety of materials, including metal plating, metal, electronic components, chemical coatings, paint, automobiles, motorcycles, metal ware, screws, springs, magnetic materials, organic and inorganic coating, anodizing, anti-rust oil industry etc. after the surface treatment.
GBPI Intelligent Sealing Performance Tester
Model: AUTO GBM-D1
GBPI- China
AUTO GBM-D1 intelligent sealing performance tester uses the working principle of pressurizing the sample to test the sealing strength and integrity of packaging materials. It is suitable for food and medicine packaging
materials such as flexible, rigid, porous and laminated aluminum foil. There are multiple test modes for comprehensive evaluation of the tightness and integrity of packaging materials. Wide applicability, complete functions and accessories, in line with applicable ASTM, ISO and GB standards. At the same time, our company provides matching accessories and services for different samples
Inverted Pressure Sterilized
Model: ZM-100
Brand:GBPI - China
ZM-100 Inverted pressure sterilizer boiler is used for sterilization and high temperature test of packaging materials (including adhesives and printing ink) in the industries of packaging, plastic films, food, medical units, inspection agency, research institute etc.
Spectrophotometer Densitometer
Model: YD5010
GBPI - China
1.Perfect combination of the beautiful appearance and the ergonomic structure design;
2.Combined LED light sources with long life and low power consumption, including UV light;
3.Switchable apertures: Φ2/4/8mm, adapt to more samples;
4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;
5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;
6.Two standard observer angles: 2/10, multiple light source modes and color systems;
7.USB mode is widely used.
8.Large-capacity storage space, over 10,000 test data;
9.Especially suitable for process control and quality control of printing plants;10. PC software has powerful function expansion.
Spout Sealing Machine For Slanted Bag
Model: GF2600-X
Brand: GBPI - China
The spout sealing machine is specialized in automatic casing and heat sealing machines for straws and bags, and can be applied to a variety of different types of straws, straws of different calibers and lengths. Applicable to different bag types, stand-up bag, three-side sealing bag, slanted bag, penguin bag. Products are suitable for a variety of industries, beverages, daily chemicals, medicine, food, etc. It has the characteristics of light weight, small footprint, simple operation and stable performance. The main components are all made of aluminum and stainless steel, which meet the environmental and hygienic quality requirements of food and drug GMP
Crush Tester RH-3000
Model: RH-3000
Brand:GBPI - China
Introduction
- RH-3000 Crush Tester is high efficiency and easy to use. It applied for the following test items: The
Cardboard Ring Crush Strength test (RCT), The Corrugated Board Edge Crush Strength test (ECT),
- The Corrugated Board Adhesive Strength test (PAT).
- The Corrugated Paper Flat Crush Strength test (FCT), corrugated paper flat compression strength test (CMT) and crushing strength test (CCT), and other products compression strength test. RH3000 Crush Tester is using high-precision sensors, high-speed chip design, to ensure sampling accuracy. It applies to the test strength of: RCT、CMT、CCT、ECT、FCT、and PAT.
Standards: ISO13820, ISO3037, ISO7263, ISO12192, ISO3035, GB/T2679.8, GB/T6546, GB/T6548, GB/T2679.6, GB/T1048
Bursting Tester GNP-1
Model: GNP-1
Brand:GBPI - China
Product Introduction
GNP-1 Bursting Strength Tester can measure the bursting strength of single-layer or multi-layer paper, and can be used to test the blasting strength of cloth, leather, paper board, thin metal sheet, etc. Using mark transmission pressure, it can automatically retain the maximum bursting strength value when bursting. The decomposition degree is 100 times higher than the needle type.
