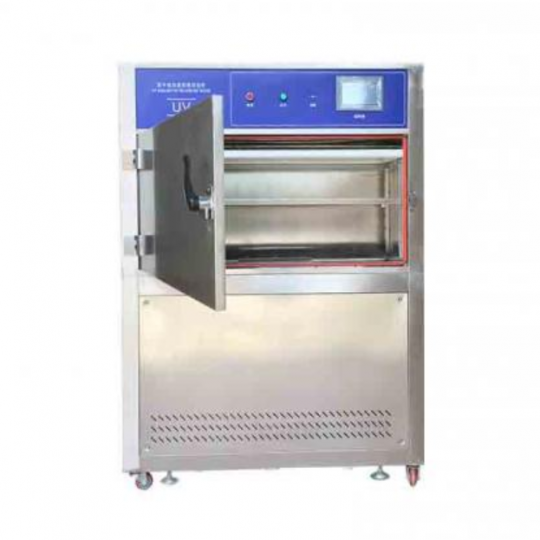

UV Lamp Aging Test Chamber GB-OUVA-115

UV Lamp Aging Test Chamber GB-OUVA-115

UV Lamp Aging Test Chamber
Model: GB-OUVA-115
GBPI - China
Profile
The UV Accelerated weathering test chamber stimulates dew and rain with consideration for humidity and/or water spray equipped with a fluorescent UV lamp which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It’s most widely used weathering tester to test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation. The source adopts 8 pieces of UV lamps of 40W as the light source. The lamps are distributed on the two sides of machine, 4 pieces for each side (UVA-340 and UVB313 optional), 8 pieces in total .

Ứng dụng:

UV Lamp Aging Test Chamber
Model: GB-OUVA-115
GBPI - China
Interior size: W1140 X H500 x D500mm
Exterior size: W1300 X H1560 x D600mm
Weight: 120kgs
Controller
- LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes.
- USB interface
- Operation button
- Alarm indicator
- Irradiation timer
Temp. control mode: PID self-adjustment SSR control
Temp. range: RT+10℃ ~ 70℃ (adjustable)
Temp. deviation: ±3.0℃
Temp. fluctuation: ±0.5℃
Humidity range: ≥93%R.H
Temp. uniformity: ±1℃
Temp. fluctuation: ±0.5℃
Distance between lamps: 70 mm
Distance between samples and lamps: 100 ± 10mm
Irradiation level: ≤1.1W/m adjustable
Adjustmen:t Test period for Temp., irradiation, condensation, spray can be adjustable
1. Irradiation lamp
ATLAS Lamp UVA-340, L=1200/40W, 8pcs (average service life: 1600hrs)
Temp. control method: PID self-adjustable SSR control
Depth of water channel: 25mm under auto-control
UV Wavelength: UVA-340: 315 ~ 400nm;
Test time: 0~999 H 99 min (adjustable)
Function: Temperature, light, condensation, spray test cycle is adjustable
Black board Temp.: 50℃ ~ 70℃ (temperature inside the chamber plus 20℃ ~ 25℃)
2. Structure & Material
a) Structure: The middle of the machine is the working chamber, the water system located at the bottom of machine, its top is the control cabinet and control panel. Open the door from front direction. The bottom of the chamber with high-quality PU activity wheel that can be fixed, users can move it according to their requirements positioning. -Single cycling system for air flue in the box, there’s one inlet axis weeding machine which improves the flow amount of air, the heating ability and the whole temperature uniformity in the test machine. -Water source and consumption: Tap water or distilled water for 8liters per day. -Heating method is to heat liner water tank with fast heating speed and high temperature uniformity.
b) Material: -Inner box: high grade stainless steel plate -Outer box: stainless steel plate SUS304 or stoving varnish for option.
3. Spray System
- Using the manual control function of the controller, to observe the spray condition in the open
- door state, so as to adjust or replace the nozzle.
- The machine is equipped with a sprinkler, the sprinkler simulates the temperature upheaval and rain erosion during the rain, with a total of several nozzles, sprayed evenly. The spray time is set by the customer.
- Inner water level is with automatic water replenishing.
4. Light source system
Types of light source (simulate the sunlight) Light source: 4 imported UV fluorescent lamps (ATLAS) with rated power of 40W, UVA-340 and UVB-313 light source for users to choose. Like other lamps, the aging of the QUV tube causes the lamp output to drop, and the QUV without the Irradiance meter control system uses the rotational position method to compensate. This system can be used for many application standards, but it has inherent limitations. This method of changing position does not compensate for the effects of different batches of lamps or the surrounding environment.
5. Equipment ambient environment:
- Grounding resistance cable is less than 4Ω;
- Requires users to configure the device at the installation site for the capacity of the air or power switch, and the switch must be independent for the device (plug-socket is not allowed);
- Temperature: 5℃ ~ +30℃
- Humidity: ≤85%
- Pressure: 86kPa ~ 106kPa
- Power supply: AC220 (±10%) V, 50 / 60HZ
- Power: 4.5KW
