Our next-generation NIR spectrometer
-
108
-
0765 259 545

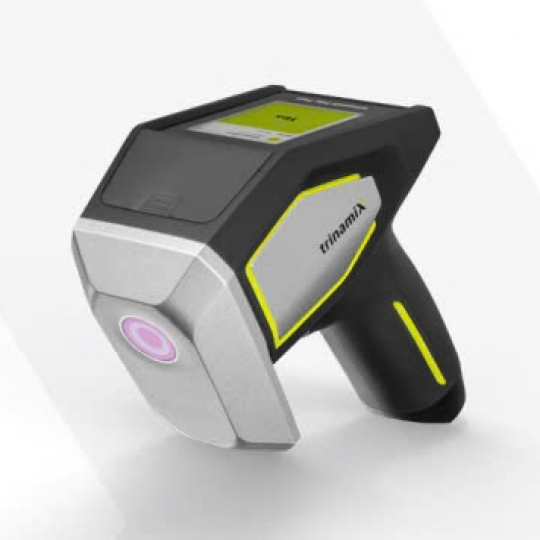

trinamiX PAL Two:
Our next-generation NIR spectrometer
Our next-generation NIR spectrometer
Spectroscopic specifications.
- Spectral range: 1,300 nm – 2,350 nm
- Scan spot size: 50 mm2 , evenly illuminated
- Spectral resolution: < 50 nm
- Signal to noise ratio: > 11,000 per spectral resolution element
Optical components.
- Technology: Grating technology
- Detector: 128-pixel PbS line array detector
- Lamp module 12 Tungsten halogen lamps Lifetime > 500,000 scans (typically)
- Scan window: Scratch resistant sapphire window
Physical specifications.
- Dimensions: 180 mm x 124.5 mm x 70 mm
- Weight: 700 g
- IP class IP65 dust- and waterproof (splash and jet water)
Environmental conditions
- Operating temperature: 0 °C – 40 °C / 0 °C – 30 °C for charging
- Storage temperature: − 20 °C – 60 °C
- Air humidity (non-condensing) 20 % – 80 % (operation) / 20 % – 90 % (storage)
- Height above sea level : ≤ 3,000 m
- Type of use: Indoor and outdoor (operation), indoor (charging)
Electrical specifications.
- Power input (for charging): 5 VDC, max. 2 A via
- USB type C connector USB-connection (for stationary use): USB type C
- Wireless connection (for handheld use): BLE (Bluetooth® Low Energy)
Battery.
- Type: Rechargeable lithium-ion battery
- Number of scans per battery charge: > 3,000, typically 5,000
- Nominal voltage: 3.6 V
- Nominal capacity: 4,900 mAh
- Charging current: 1,600 mA
- Transport classification:
+ UN class: 9
+ UN number: 3,480, Lithium-ion battery
+ Energy of battery: < 100 Wh
Radio frequency module
The device contains the following radio frequency (RF) module:
Type: ESPRESSIF ESP32-S3-MINI-1
- Frequency range: 2.40 – 2.48 GHz
- Max. output power: Typ. 0 dBm, max. 9.96 dBm
Product Similar
NIR Spectrometer
Brand: TrinamiX
TrinamiX clearly analyzes food quality
TrinamiX has developed exclusive and patented infrared detectors that can see light in the wavelength range up to 3 μm – the near-infrared spectrum.
TrinamiX IR sensors are compact and highly detectable, thus enabling the creation of a powerful NIR spectrometer: a ‘lab in the pocket’
0765 259 545
Handheld NIR Infrared Spectrometer
Applications:
- Pharmaceutical & Chemical
trinamiX provides industrial manufacturers with the ability to get quick and easy answers to their most pressing challenges: product and process safety, achieving maximum efficiency and better sustainability.
- Liquids
trinamiX has made NIR spectroscopy of liquids accessible and affordable beyond laboratory applications: Based on transmission spectroscopy, our portable solution provides instant insights into the molecular composition of a sample.
