Falling-Pendulum Type Tearing Tester GT-C10B

Falling-Pendulum Type Tearing Tester GT-C10B

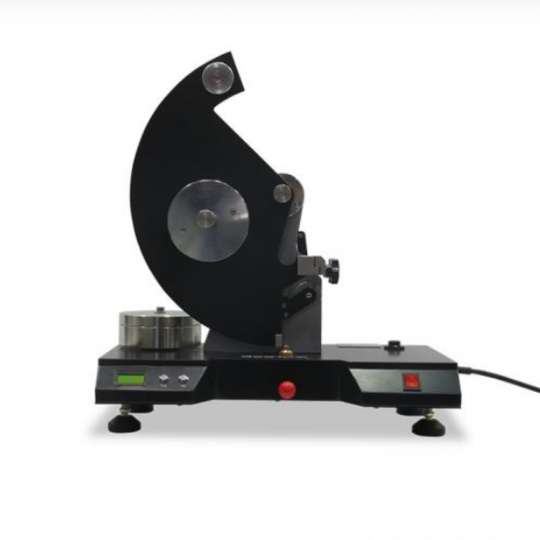

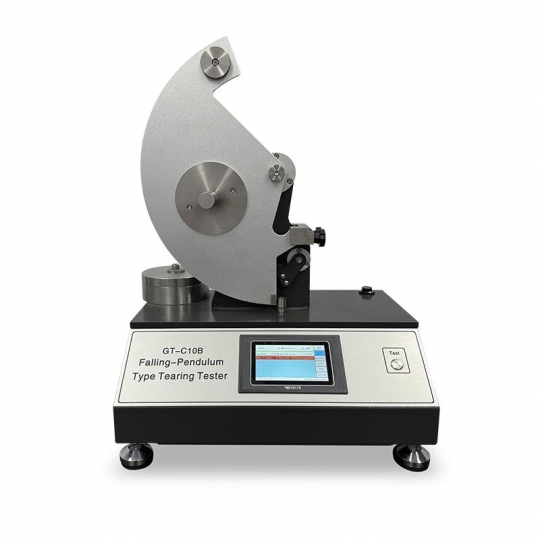

Falling-Pendulum Type Tearing Tester
Model: GT-C10B
Manufacturer: Gester - China
This Falling-Pendulum Type Tearing Tester can be used to test the Determination of tear resistance of textile, non-woven fabrics, paper, paperboard, thin film, ventilation tape, sheet metal etc.

Ứng dụng:

Falling-Pendulum Type Tearing Tester
Model: GT-C10B
Manufacturer: Gester - China
Feature of tearing tester
1. This Falling-Pendulum Type Tearing Tester LCD display, simple to operate and easy to understand.
2. Microprocessor can automatically detect and analyze data. It features precision test, reliable performance and simple operation.
3. The tearing tester all can meet the related requirements of GB/T3917.1-2009 .
4. Apply to the determination of tear strength of various woven fabrics and other materials, such as paper, plastic sheets, film, electrical tape, sheet metal and so on.
Key Specifications of elmendorf tear tester
Range of tearing force:
0~16N (A)
0~32N (A+B)
0~64N (A+B+C)
- Accuracy: ≤ ±1%F·S
- Rip Length: 43mm
- Power Supply: AC220V 50Hz 20W
- Dimensions: 400×210×395mm
- Weight: 30kg
- Standards accessories:
Pendulum B (16N) 1pc
Pendulum C (32N) 1pc
Sample Template 1pc
Power Line 1pc
All kinds of Below materials can be tested on the Falling-Pendulum Type Tearing Tester GT-C10B

elmendorf tear tester
