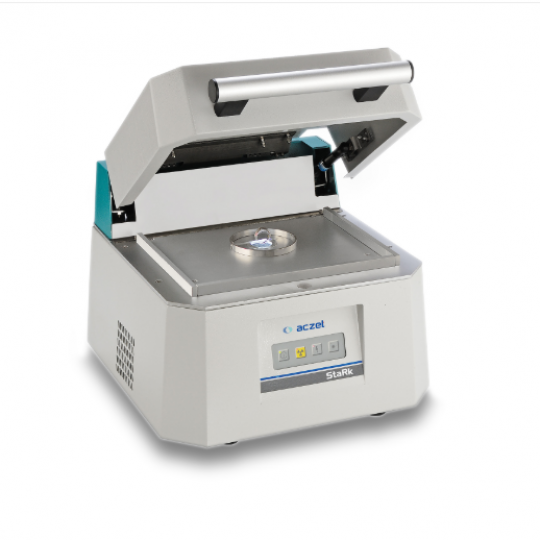

Stark
Detector | High Resolution SI-PIN | Measuring Direction | Bottom to Top |
Applied Application | Gold & Silver Analysis in jewellery and alloys, Coating Thickness Measurement on Metals | X-ray Tube | Mini-focus,high performance,Long Life, High efficiency, tungsten target oil cooled W-target, Spot 0.2mm-0.8mm, |
High Voltage | 0 - 50kV (1.2mA) Software Control Optimized | Measurement Time | 30 to 60 seconds |
Collimator | 0.3mmØ or 0.5mmØ, Optional four positions Collimator changer | Dimension (WxDxH) | 350 x 450 x 310 mm (WxDxH) |
Weight | 32 kg |
