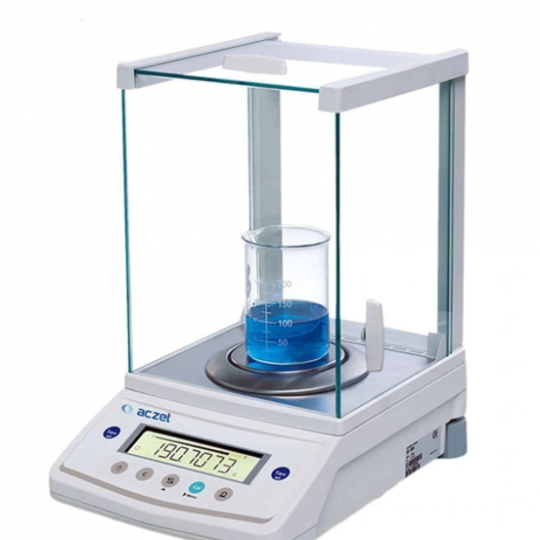

Analytical Balance CY 224

Analytical Balance
Model: CY224
Brand: ACZET

Technical Specifications:

• Minimum Weighing Capacity: 10 mg
• Maximum Weighing Capacity: 220 g
• Readability: 0.1 mg
• Repeatability: ±0.1 mg
• Linearity: ±0.2 mg
• Tare Weight: -220 g
• Minimum Sample Weight (U=1% K=2): 16 mg
• Minimum Sample Weight (according to USP): 160 mg
• Weighing Pan Size: Ø 90 mm
• Response Time: 2 - 3 seconds
• Display: LCD display with LED backlight
• Measurement Units: gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
• Operating Temperature: 18°C to 30°C
• Interfaces: RS 232C/ USB (optional)
• Power Supply: DC adapter, input 100 ~ 240 V, 0.8A, output 13V / 1.5A, 50/60Hz
• Dimensions (W x D x H): 342.5 x 212 x 341 mm
• Chamber Height: 228.5 mm
• Weight: 9.3 kg
