Martindale Abrasion and Pilling Tester GT-C13B
-
152
-
0765 259 545

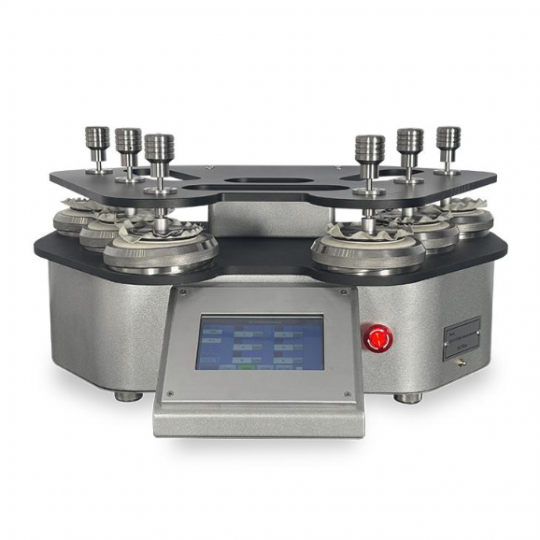

Martindale Abrasion and Pilling Tester
Model: GT-C13B
Gester - China
Application of martindale abrasion tester:
- The martindale abrasion and pilling tester is used to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrade at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.
- The upgraded Martindale abrasion and pilling tester features several improvements. It is driven by a dual servo system, which enhances its performance and accuracy. The tester generates a standard Lissajous figure motion trajectory.
- The tester is equipped with six test modes to cater to various testing requirements. These modes include abrasion 60×60, pilling 24×24, 60-X, 60-Y, 24-X, and 24-Y. Switching between different modes is effortless, requiring only a single click without the need for hardware conversion operations.
Model: GT-C13B
Gester - China
Application of martindale abrasion tester:
- The martindale abrasion and pilling tester is used to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrade at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.
- The upgraded Martindale abrasion and pilling tester features several improvements. It is driven by a dual servo system, which enhances its performance and accuracy. The tester generates a standard Lissajous figure motion trajectory.
- The tester is equipped with six test modes to cater to various testing requirements. These modes include abrasion 60×60, pilling 24×24, 60-X, 60-Y, 24-X, and 24-Y. Switching between different modes is effortless, requiring only a single click without the need for hardware conversion operations.

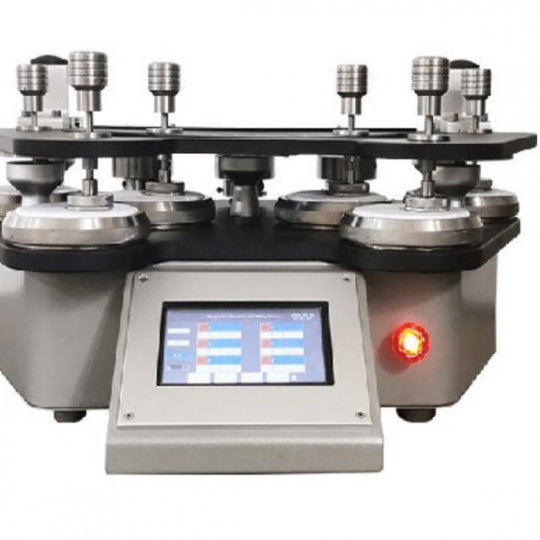

Martindale Abrasion and Pilling Tester
Model: GT-C13B
Gester - China
Model: GT-C13B
Gester - China
Standards of martindale abrasion tester:
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, CEN/TS-16611, IWS TM 112,
M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096 ( ISO17076-2 ball plate method ,optional), EN388 Section6.1, EN 13770
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525, CEN/TS-16611
Feature of martindale tester
1.Martindale fabric abrasion test standard: Lissajous figure, straight line.
2.Martindale Abrasion and Pilling Tester Working positions: 4, 6, 8, 9 optional.
3.Counting Method: 1) count up. 2) count down.

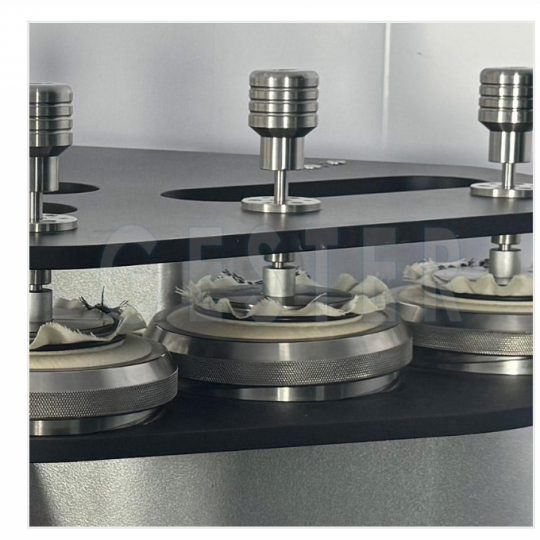

4.Instead of the structure supported by steel balls, new and upgraded design avoids the risk of uneven cover plate caused by ball wear. The cover plate can be folded and turned up to facilitate sample loading and test results.
5.Standard sample holders with 9 and 12kpa weights included.
6.Martindale abrasion resistance test, PLC, 7 inches color touch screen, Chinese and English operation interface.
7.Weights and key components are made up by stainless steel which is well-formed and durable in use.
3.Counting Method: 1) count up. 2) count down.
4.Instead of the structure supported by steel balls, new and upgraded design avoids the risk of uneven cover plate caused by ball wear. The cover plate can be folded and turned up to facilitate sample loading and test results.
5.Standard sample holders with 9 and 12kpa weights included.
6.Martindale abrasion resistance test, PLC, 7 inches color touch screen, Chinese and English operation interface.
7.Weights and key components are made up by stainless steel which is well-formed and durable in use.
8. To prevent distortion, the top motion plate was special made up by 316 aluminum alloy.
9. The added lubricating oil injection hole is convenient for customers to maintain and ensure that the machine can run stably for a long time.
Key Specifications of Martindale Teste
|
Model
|
GT-C13B-4
|
GT-C13B-6
|
GT-C13B-8
|
GT-C13B-9
|
||||
|
Working positions
|
4
|
6
|
8
|
9
|
||||
|
Control mode
|
PLC control and touch screen display
|
|||||||
|
Counter range
|
0~999999 times
|
|||||||
|
Test pressure
|
Abrasion test
|
A)Specimen holder: (198 ±2)g
B) Larger loading piece: (597±5)g
C) The sum mass: (795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
|
||||||
|
A)Specimen holder: (198 ±2)g
B) Smaller loading piece: (397±5)g
C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)
|
||||||||
|
Pilling test
|
A) Stainless steel loading piece: (155 ± 1) g
B) Specimen holder: (260 ± 1)g
C) The sum mass: (415± 2)g
|
|||||||
|
Holder effective diameter
|
A) Abrasion Holder: Φ(28.65 ± 0.05)mm
|
|||||||
|
B) Pilling Holder: Φ(90 ± 0.10)mm
|
||||||||
|
Rotational speed
|
47.5± 2.5r/min
|
|||||||
|
Pressing weight
|
Mass: (2.5 ± 0.5) kg
|
|||||||
|
Diameter: Φ(120 ± 10) mm
|
||||||||
|
Power supply
|
AC220V 50/60Hz
|
|||||||
|
Dimensions(L x W x H)
|
60×55×41cm
|
88×61×41cm
|
90×62×41cm
|
90×62×41cm
|
||||
|
Weight
|
75kg
|
130kg
|
145kg
|
150kg
|
||||
Accessories A:
|
Abrasion weight and holder
|
1set
|
|
Pilling weight and holder
|
1set
|
|
Standard abradents fabric
|
2 pcs for each head
|
|
Standard backing foam 38mm
|
box of 60pcs
|
|
Standard woven felt discs 140mm
|
2 pcs for each head
|
|
Standard woven felt discs 90mm
|
2 pcs for each head
|
|
Photographs (copy one)
|
1set
|
|
Sample cutting template(Φ38mm , Φ90mm, Φ140mm)
|
1pc for each size
|
|
Pressing weight
|
1pc
|
|
Auxiliary device for specimen mounting
|
1pc
|
|
Steel ball
|
3pcs
|
|
Power line
|
1pc
|
