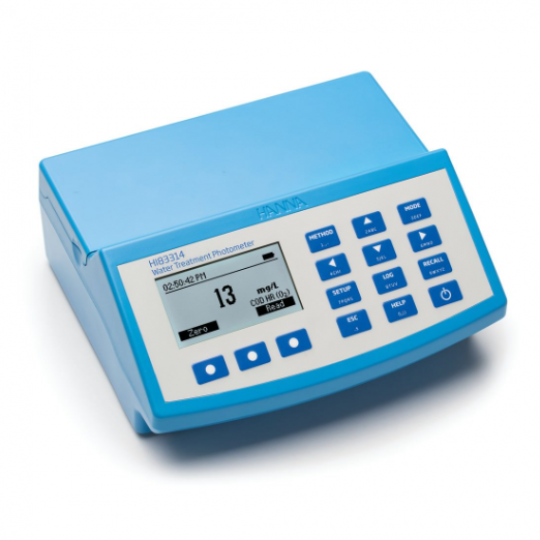

Multiparameter Meter HI83314-02

Multiparameter Meter HI83314-02

1. pH Measurement

• Range: -2.00 to 16.00 pH

• Resolution: 0.1 pH

• Accuracy: ±0.01 pH

• Calibration: Automatic, at 1 or 2 points using pre-programmed buffers (4.01, 6.86, 7.01, 9.18, 10.01)

• Temperature Compensation: Automatic (-5.0 to 100.0°C; 23.0 to 212.0°F), depending on the pH electrode used

• CAL Check: Displays clean electrode status and verifies buffer/probe during calibration

2. mV (pH) Measurement

• Range: ±1000 mV

• Resolution: 0.1 mV

• Accuracy: ±0.2 mV

3. Photometric Parameters

COD Measurement:

• Low Range (LR):

  • Range: 0 to 150 mg/L

  • Resolution: 1 mg/L

  • Accuracy: ±5 mg/L / ±4% of reading

  • Reagent Code: HI93754A-25

• Medium Range (MR):

  • Range: 0 to 1500 mg/L

  • Resolution: 1 mg/L

  • Accuracy: ±15 mg/L / ±4% of reading

  • Reagent Code: HI93754B-25

• High Range (HR):

  • Range: 0 to 15000 mg/L

  • Resolution: 1 mg/L

  • Accuracy: ±150 mg/L / ±2% of reading

  • Reagent Code: HI93754C-25

Additional Parameters:

• Absorbance: 0.000 to 4.000 Abs

• Ammonia (NH3-N):

  • Low Range (LR): 0.00 to 3.00 mg/L

  • Medium Range (MR): 0.00 to 10.00 mg/L

  • High Range (HR) (digestion vials): 0.0 to 100.0 mg/L

• Chlorine (free): 0.00 to 5.00 mg/L Cl₂
  (Available as liquid or powder reagents)

• Nitrate (digestion vials): 0.0 to 30.0 mg/L NO₃⁻-N

• Total Nitrogen:

  • Range 1 (digestion vials): 0.0 to 25.0 mg/L NO₃⁻-N

  • Range 2 (digestion vials): 0.0 to 150 mg/L N

• Phosphorus, Hydrolyzable Acid: 0.00 to 1.60 mg/L P
