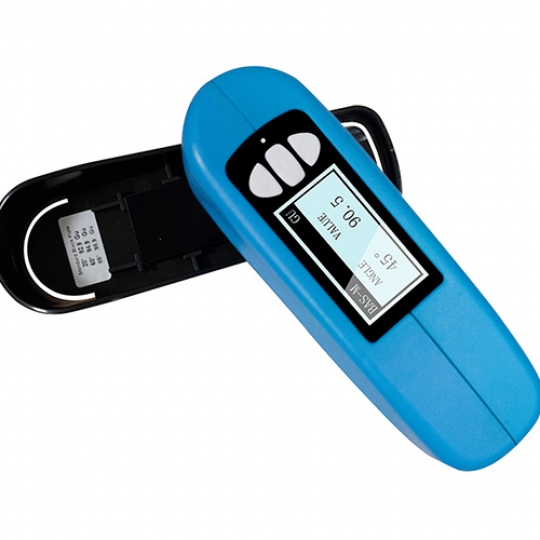

WG45 Gloss Meter

WG45 Gloss Meter

WG45 Gloss Meter
Model: WG45
FRU - China
WG45 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.
It is mainly used on Ceramic, enamel , plastic, film etc.

Ứng dụng:

WG45 Gloss Meter
Model: WG45
FRU - China
Specifications:
Range: 0~200Gu
Measurement range: It is suitable for measuring the surface gloss value of ceramic products, enamel products, plastic products, plastic films, etc.
Size: 159x49x72mm
Measurement angle: 45°
Measurement light spot: (Ellipse: Small axis) 9mm x 15mm
Measurement mode: Automatic measurement, manual measurement, single measurement, average measurement, and can perform cross setting for measurement, providing multiple combination measurement modes.
Data storage: 5000 sets. Any stored data can be set as standard to customize the tolerance range
Language: Chinese/English
Measurement time: 0.4s
Graduation value: 0.1Gu
Repeatability: 0.2Gu
Reproducibility: 0.4Gu
Indication error: 1.0Gu
International standards: ISO-2813、ASTM-C584、ASTM-D523、DIN-67530、ASTM-D2457、JND-A60、JND-P60
