WR10 Colorimeter

WR10 Colorimeter

WR10 Colorimeter

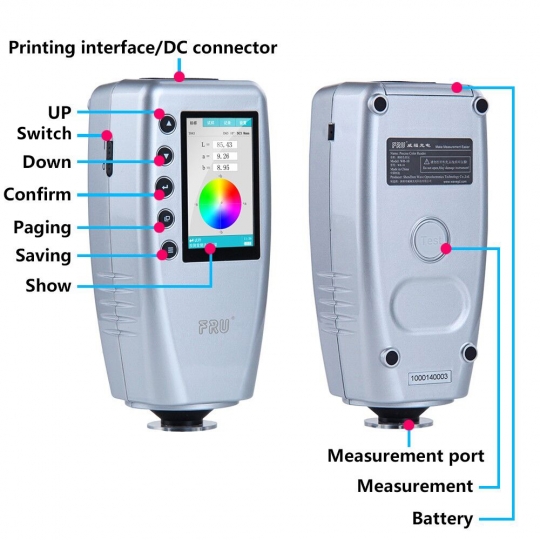

Model: WR10
FRU - China
The instrument is well designed with features of accurate, stable, easy to use, easy to learn and cost-effective.
2、The instrument is used for color quality control, color difference control, color difference analysis, sampling testing and online testing for industries such as textile, printing and dyeing, garment, footwear, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys, etc.

Ứng dụng:

WR10 Colorimeter
Model: WR10
FRU - China

Color Space: CIELAB
Color Difference Formula: △E*ab
- Measurement Caliber: φ8mm
- Illumination Condition: CIE
Recommendation:8/d
Light Source: D65
Sensor: Photodiode array
Observer: CIE 10° Standard observer
Measurement Range: L: 0 to 100
Repeated Accuracy: △E<0.08
Table Difference: △E<0.2
Measurement Interval: 0.5 Sec.
Storage Capacity: Type sample data : 100 groups with testing sample data: 100 groups
Lifetime of Bulb: 5 years more than 1.6 million measurements
Display Screen: TFT true color 2.8inch@(16:9)
Language: English/Simplified Chinese
Working: Temperature Range0℃-40℃(32℉-104℉)
Storage Temperature Range : -20℃-50℃(-4℉-122℉)
Humidity Range: Relative humidity less than 85%,without condensation
Weight: 700g
Size: 199*68*90mm
Package Size: 400*240*340mm
Battery Charging Time: 8 hrs
Battery: Li-ion battery, 5000 times Measurement
Standard Accessories: AC adapter/ 3000mAH Li-ion battery
Optional Accessories :Flour measuring device/Micro printer
