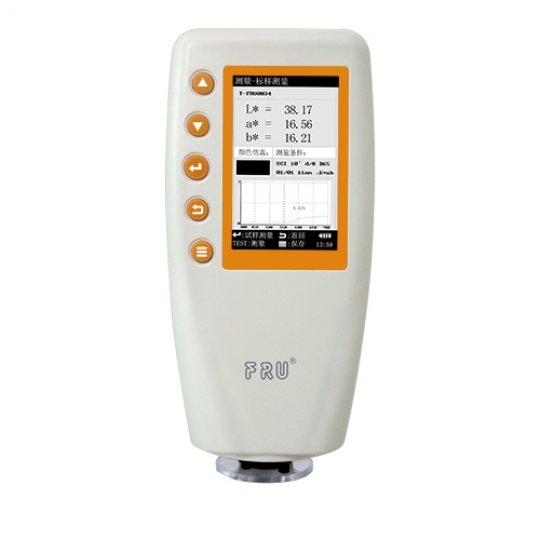

WN700D Spectrophotometer

WN700D Spectrophotometer

Spectrophotometer
Model: WN700D
FRU - China
Application
●Keep the standard whiteboard clean and avoid contamination of the standard whiteboard with stains, dust, etc.
●When using the instrument, the ambient temperature is 0 ° C ~ 40 ° C, the relative humidity is 85%, no condensation
●Avoid using the instrument in an environment with strong magnetic fields, severe vibration, dust, and smoke to prevent abnormal instrument data and performance failure.
●Avoid foreign matter such as liquid, powder, solid, etc. entering the inside of the instrument to prevent abnormal measurement data.

Ứng dụng:

WN700D Spectrophotometer
Model: WN700D
FRU - China
- Geometric Conditions: d/8
- Color Space: CIEL*a*b*、CIEL*C*h、Yxy
- Standard Light Source: A、C、D50、D65、F2(CWF)、F12(U30)
- Light Source: Combined LED
- Color Diff. Formula: △E*ab、△E*Ch
- Measuring Caliber: Facula 4mm(Caliber Φ6mm)、 Facula 8mm(Caliber Φ11mm)、Facula 16mm(Caliber Φ16mm)
- SCI/SCE: SCI
- Sensor Array: Line array CMOS@256 pixels
- Spectral Way: Concave diffraction grating
- Observer: CIE10°(1964)、CIE2°(1931)
- Wavelength coverage: 400nm~700nm
- Wavelength interval: 10nm
- Measuring interval: 2.5 Second
- Reflectance range: 0%-200%
- Repeated accuracy: △E<0.07 (take the deviation average after 30 times measuring the whiteboard)
- Table Difference: △E<0.4(Measure the RAL 12-color blocks)
- Light source life: More than 50,000 hours
- Battery power: Measuring more than 10000 times
- Display screen: TFT true color 2.8inch@(16:9)
- Data storage capacity:
- Storage Standard: 100 groups
- Sample 16,000 groups: Operating temperature 0℃-40℃(32℉-104℉)
- Storage temperature: -20℃-50℃(-4℉-122℉)
- Working humidity: Relative humidity less than 85%,without condensation
- G.W: 1.5kgs
- Size of exterior package: 28*19*11cm
- Standard accessories: Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software
- Optional accessories: Software(Advanced Version), Micro printer, Locating block
