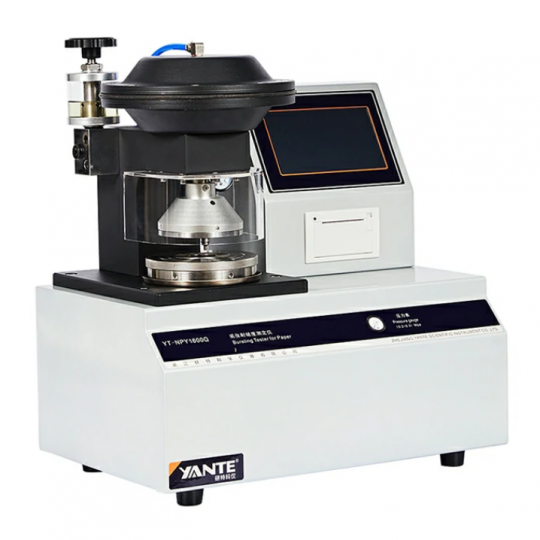

YT-NPY1600Q Bursting Tester for Paper
-
1135
-
0765 259 545
Executive standard: GB/T 454，QB/T 2679.8，ISO 27
Application range
All kinds of paper, cardboard, grey board paper, color box, and non-paper materials such as aluminum foil, film, rubber, silk, cotton cloth, etc.
Product features
● The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range
● Pneumatic clamping system, one key test
● ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data
● Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Over-range automatic reset
● Three units can be selected kPa, kgf/cm2, Psi,can be switched freely
● Communication with computer software (purchase separately)
Application range
All kinds of paper, cardboard, grey board paper, color box, and non-paper materials such as aluminum foil, film, rubber, silk, cotton cloth, etc.
Product features
● The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range
● Pneumatic clamping system, one key test
● ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data
● Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Over-range automatic reset
● Three units can be selected kPa, kgf/cm2, Psi,can be switched freely
● Communication with computer software (purchase separately)
Technical parameters
1/ Power Supply: AC100V±10% or AC220V±10%，(50/60)Hz，150W
2/ Working Environment: Temperature(10~35)℃, Humidity≤ 85％
3/ Measuring range: 50～1600kPa
4/ Indication error: ±0.5%(Range 5%～100%)
5/ Resolution : 0.1kPa
6/ Refueling speed: 95±5 ml/min
7/ Air pressure adjustment: 0.15MPa
8/ Hydraulic system tightness: Upper limit of measurement，1min Pressure drop＜10％Pmax
9/ Upper clamp ring aperture: 30.5±0.05 mm
10/ Lower clamp ring aperture: 33.1±0.05 mm
11/ Print: Built-in thermal printer
12/ Communication Interface: RS232(Default) (USB, WIFI optional)
13/ Dimension: 470×320×520 mm
14/ Net Weigh: 56kg around
Product Similar
YT-ACM Automatic Colorimeter
Brand Name：YANTE - China
Model：YT-ACM
Application range: Paper, cardboard, pulp, ceramics; Cement, starch, calcium carbonate, talcum powder and other powders
0765 259 545
Application range
paper, paper jam, cardboard, carton, color box, shoe box, paper tray, film, cloth, leather, etc.
Product features
● Automatically release the pendulum, high test efficiency
● Chinese and English operation, intuitive and convenient to use
● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
● Communication with computer software (purchase separately)
0765 259 545
YT-IBT Internal Bond Tester
Brand Name：YANTE
Application range
Box board, white board, gray board, white cardboard
Product features
● The non-damped encoder reduces the friction of the bearing and improves the measurement accuracy.
● ARM processor, 7-inch color touch screen, Chinese menu, simple and convenient operation.
● It can store 16000 sets of batch data, which is convenient for users to check historical measurement data.
● The sample preparation and test are separated, and the sample preparation adopts pneumatic pressure. Compared with ordinary hydraulic paper samplers, no maintenance such as oil injection is required.
● Communication with computer software (purchase separately)
0765 259 545
