Colorimeter CS 720
-
88
-
0765 259 545

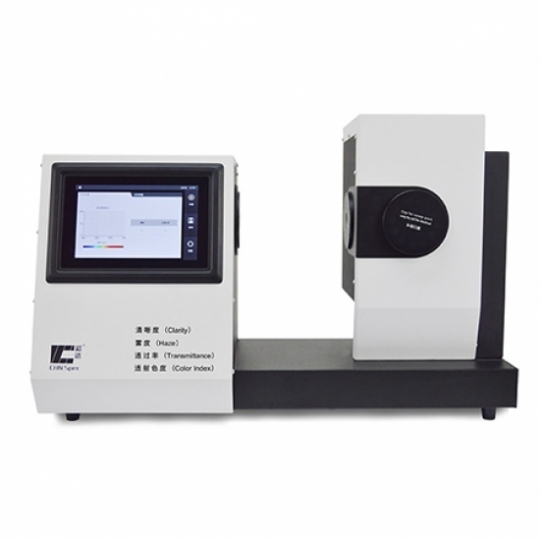

Colorimeter
Model: CS 720
Manufacturer: CHN - China
CS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance
and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
Download literature
Front Front side
Definition measurement parameters
7-inch capacitive touch screen for more convenient operation
Android operating system
Follow ASTM and ISO standards
It has a comprehensive color measurement function in the industry
Model: CS 720
Manufacturer: CHN - China
CS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance
and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
Download literature
Front Front side
Definition measurement parameters
7-inch capacitive touch screen for more convenient operation
Android operating system
Follow ASTM and ISO standards
It has a comprehensive color measurement function in the industry
Colorimeter
Model: CS 720
Manufacturer: CHN - China
Light source; Haze / transmittance:CIE-A,CIE-C,CIE-D65
Chromaticity index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12, CMF,U30,DLF,NBF,TL83,TL84
Follow standards: ASTM D1003/D1044,ISO13468/ISO14782 JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15, ISO 7724/1,ASTM E1164,DIN 5033,Teil7,JIS Z8722,Condition C standard
Measurement parameters: HAZE,Transmittance(T%),definition(C%),Spectral transmittance,CIE Lab,LCh,CIE Luv,XYZ,Yxy,Hunter Lab ,MunsellMI,
CMYK,Whiteness WI(ASTME313-00,ASTM E313-73CIE/ISOHunter,Taube Berger Stensby),Yellowness YI(ASTM D1925,
ASTME313-00,ASTM E313-73),Tint(ASTM E313-00),Homochromatic heterospectral index MilmAPHA、Pt-Co,
Gardner,chromatic aberration: (ΔE*abΔE*CH ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00）
Spectral response: CIE spectral function y / V（ λ)
Wavelength range: 400-700nm
Wavelength interval:10nm
Optical path structure: 0/d
Lighting and samples
Aperture size: 18mm/25.4mm
Range: 0-100%
Haze resolution: 0.01%
Haze repeatability: Repeatability ≤ 0.05% when haze < 10%; Repeatability ≤ 0.1% when haze ≥ 10%; Transmittance repeatability: ≤ 0.1%
sample size Thickness≤145mm
Display: 7-inch capacitive touch screen
Store data : Mass storage
Interface: USB-A,USB-B
Power Supply: 220V（Built in power cord）
Working temperature: 5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃) no water vapor condensation
Model: CS 720
Manufacturer: CHN - China
Light source; Haze / transmittance:CIE-A,CIE-C,CIE-D65
Chromaticity index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12, CMF,U30,DLF,NBF,TL83,TL84
Follow standards: ASTM D1003/D1044,ISO13468/ISO14782 JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15, ISO 7724/1,ASTM E1164,DIN 5033,Teil7,JIS Z8722,Condition C standard
Measurement parameters: HAZE,Transmittance(T%),definition(C%),Spectral transmittance,CIE Lab,LCh,CIE Luv,XYZ,Yxy,Hunter Lab ,MunsellMI,
CMYK,Whiteness WI(ASTME313-00,ASTM E313-73CIE/ISOHunter,Taube Berger Stensby),Yellowness YI(ASTM D1925,
ASTME313-00,ASTM E313-73),Tint(ASTM E313-00),Homochromatic heterospectral index MilmAPHA、Pt-Co,
Gardner,chromatic aberration: (ΔE*abΔE*CH ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00）
Spectral response: CIE spectral function y / V（ λ)
Wavelength range: 400-700nm
Wavelength interval:10nm
Optical path structure: 0/d
Lighting and samples
Aperture size: 18mm/25.4mm
Range: 0-100%
Haze resolution: 0.01%
Haze repeatability: Repeatability ≤ 0.05% when haze < 10%; Repeatability ≤ 0.1% when haze ≥ 10%; Transmittance repeatability: ≤ 0.1%
sample size Thickness≤145mm
Display: 7-inch capacitive touch screen
Store data : Mass storage
Interface: USB-A,USB-B
Power Supply: 220V（Built in power cord）
Working temperature: 5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃) no water vapor condensation
