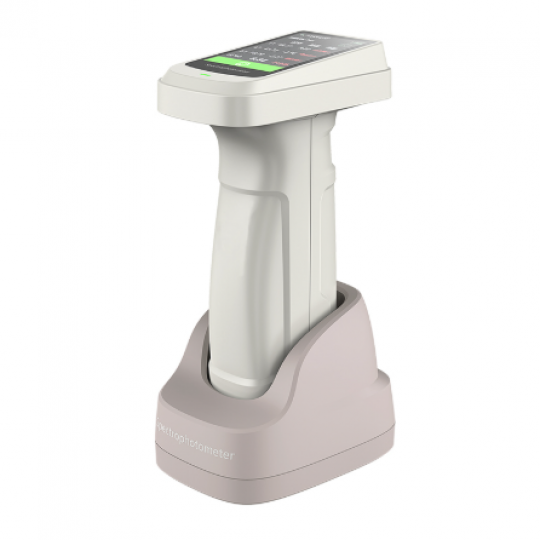

Spectrophotometer DS-700D
-
482
-
0765 259 545
Spectrophotometer
Model: DS-700D
Manufacturer: CHN - China
Contact for quote: 0765 259 545
Model: DS-700D
Manufacturer: CHN - China
Contact for quote: 0765 259 545
Spectrophotometer
Model: DS-700D
Manufacturer: CHN - China
Model: DS-700D
Manufacturer: CHN - China
- Illumination/Light Receiving System: d/8,SCI+SCE
- Sensor: Dual-column high-precision CMOS array sensor
- Spectroscopic method : Grating
- Integrating sphere size: Φ40mm
- Measurement wavelength range: 400-700nm
- Measuring wavelength interval: 10nm
- Reflectance measurement range: 0-200%，Resolution：0.01%
- Lighting source: Full-band balanced LED light source + UV
- Measure time: About 1.5 s
- Measurement/Illumination Aperture: 3 calibers（MAV:Φ8mm/Φ11mm；SAV:Φ4mm/Φ6mm；MINI:1*3mm）
- Repeatability: ΔE*ab≤ 0.025
- difference between devices: ΔE*ab≤0.25
- Language mode: Simplified Chinese, English
- Display accuracy: 0.01
- Standard Observer: 2°，10°
- Observe the light source: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7, F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF, TL83, TL ID65,LED-B1, LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
- Color Space / Chroma Metrics: Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00), Whiteness (ASTM E313-00,ASTM E313 -73,CIE/ISO,AATCC, Hunter,Taube Berger Stensby)Yellowness (ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness（My,dM),Color fastness fastness,Tint(ASTM E313-00), Color densityCMYK(A,T,E,M),Metamerism Index Milm,Munsell,Hiding power,Force(Dye strengt strength)
- RAM: APP mass storage
- Port : USB，Bluetooth
- Battery capacity: 8000 continuous measurements on a single charge， 3.7V/3000mAh
- Camera framing positioning :Yes
- Calibration: Smart Auto Calibration
- Software support: Andriod,IOS,Windows
- Accuracy Guarantee: Guarantee first-level measurement qualified
- Standards compliant : Standards compliant CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5
- Screen: IPS full color screen 3.5 inches
- Light source life: 1 million times in 10 years
- Data storage: 100 standard samples, 10000 samples
Product Similar
Colorimeter
Model: CS 720
Manufacturer: CHN - China
CS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance
and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
Download literature
Front Front side
Definition measurement parameters
7-inch capacitive touch screen for more convenient operation
Android operating system
Follow ASTM and ISO standards
It has a comprehensive color measurement function in the industry
0765 259 545
Spectrophotometer
Model: CS-390
Manufacturer: CHN - China
Contact for quote: 0765 259 545
0765 259 545
Spectrophotometer
Model: DS-1000
Manufacturer: CHN - China
Contact for quote: 0765 259 545
0765 259 545
Benchtop Spectrophotometer
Model: CS-821N
Manufacturer: CHN - China
CS-821N is a highly stable benchtop spectrophotometer; the newly upgraded auto-calibration technology ensures
excellent stability of the instrument for long-term use and measurement, even in the case of drastic environmental
changes. Benchtop spectrophotometer cs-821N has two illumination sources: pulsed xenon lamp and led; with 24
standard light sources and 40+ measurement indicators, it can simulate and calculate color data under various light
sources and color indicators.
