HB501 62.5 - 3000KGF Automatic Digital Brinell Hardness Tester With 8-650 HBW Test Range
-
21
-
0765 259 545

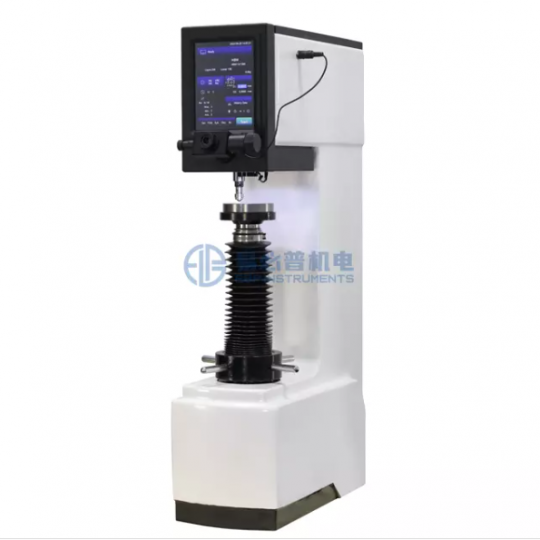

62.5 - 3000KGF Automatic Digital Brinell Hardness Tester With 8-650 HBW Test Range
Model: HB501
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
Model: HB501
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
62.5 - 3000KGF Automatic Digital Brinell Hardness Tester With 8-650 HBW Test Range
Model: HB501
Manufacturer: EBP - China
Model: HB501
Manufacturer: EBP - China
Features:
1. Large test force range: 62.5Kgf to 3000Kgf
2. With 10 kinds of measurement scale
3. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.
4. Indenter can move down after press start key, no need manual give initial load. For batch inspection of the same size sample will very easily, just put sample on the work table, then press start key machine will automatic test, no need manual adjust screw rod. Makes testing work more easier and high efficiency.
5. Measuring indentation automatically, no need to focus
6.Hardness value display on screen, and with hardness conversion function
7. One-time casting machine body with car painting design, structure more stable and looking more beautiful
8. Digital eyepiece with built-in encoder, just click the encoder button indentation length will input to machine automatically, and machine automatically calculate the hardness value.
9. Large test space: 150mm Depth (170mm depth for optional)
10. Touch screen interface, menu structure interface, more information display
11. Modular design, easy maintenance
12. Low noise test process, suitable work
at in research labs, school, Industrial plant, etc.
Technical Specifications:
Turret: Automatic turret
Brinell Scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500 HBW10/1000, HBW10/1500, HBW10/3000
Load Kgf(N): 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
microscope magnification: 20X
Min measuring unit: 0.625µm
Dwell time: 1-99s
Hardness range: 8-650HBW
Data output: Touch screen display
Test space: 280*150mm (H*D) ; Optional: 280mm*170mm (H*D)
Power supply: AC220+5%,50~60Hz
Size & Weight: 600*230*920mm, 130kg
Executive Standard: ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
Brinell Scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500 HBW10/1000, HBW10/1500, HBW10/3000
Load Kgf(N): 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
microscope magnification: 20X
Min measuring unit: 0.625µm
Dwell time: 1-99s
Hardness range: 8-650HBW
Data output: Touch screen display
Test space: 280*150mm (H*D) ; Optional: 280mm*170mm (H*D)
Power supply: AC220+5%,50~60Hz
Size & Weight: 600*230*920mm, 130kg
Executive Standard: ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
Product Similar
Electric Analog Universal Hardness Tester Rockwell Combined Brinell And Vickers
Model: BRV-187.5E
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
0765 259 545
Computerized Fully Automated Brinell Hardness Tester
Model: B-3000AZ
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
0765 259 545
Rockwell And Superficial Rockwell Hardness Tester With Load Cell
Model: eRSR-150TL
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
0765 259 545
Intelligent Computerized Macro Vickers Hardness Tester
Model: HVT-10C
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
0765 259 545
Computerized Digital Micro Vickers Hardness Tester
Model: HDV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Test force 10g to 1000g, can extend to 2000g.
Built-in high lightness , long life LED light source;
Built-in 5 million high-definition CCD camera, short optical path, clearer image;
Software can control machine turret, lightness, etc., generate customized test report;
On Software automatic measure the indentation and get test result.
0765 259 545
Close Loop Advanced Digital Twin Rockwell Hardness Tester With Load cell design
Model: HRR-150DT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Close loop load cell design, no need install dead weights;
With Rockwell and superficial Rockwell test function;
Initial test force: 3 / 10kgf; Main test force: 15 / 30 / 45 / 60 / 100 / 150kgf;
With indenter protective device, indenter service time more longer;
Touch screen control with menu structure, very easier operation.
With hardness conversion function, on screen can display Vickers hardness value HV, Brinell hardness value HBW, Knoop hardness value HK, Superficial Rockwell hardness value HR15T, etc.
0765 259 545
Hardness Tester
Model: HB3000-5AT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
0765 259 545
