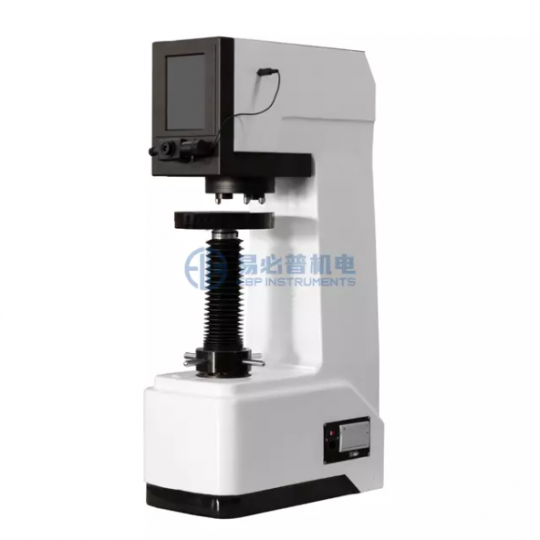

Brinell Hardness Tester HB3000-5AT
-
17
-
0765 259 545
Hardness Tester
Model: HB3000-5AT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
Model: HB3000-5AT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
Hardness Tester
Model: HB3000-5AT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Model: HB3000-5AT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Main Function:
HB3000-5AT five position turret three indenters digital Brinell hardness tester adopts casting shell with strong rigidity and precise structure design, the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact.
1) This instrument has 11 level of test force, 15 Brinell hardness test scales, suitable for different kinds of metal materials;
2) With three indenters and two objectives, no need to change the indenters when testing different samples; with rigorous optical structure and high magnification, it makes the indentation observed clearly;
3) Lens and indenter switch by manual, precision mechancial design, long service time.
4) Adopted 8'' touch screen, hardness scale, test force, dwell time, conversion scale, etc all can be selected on the screen;
5) Adjustable lightness of light source, measure indentation more easier;
6) Conversion scales of different kinds of hardness;
7) Hardness result can be print by inbuilt printer.
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Technical Specification:
|
Model
|
HB3000-5AT
|
|
|
Test Force
|
kgf
|
31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
|
|
N
|
306.45N, 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
|
|
|
Test Range
|
8-650HBW
|
|
|
Loading Method
|
Automatic (Loading/Dwell/Unloading)
|
|
|
Hardness Reading
|
8'' Industrial level Touch Screen
|
|
|
Conversion Scale
|
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW
|
|
|
Data Output
|
Inbuilt printer, RS232 port
|
|
|
Shifting between Objective and Indenter
|
Manual switch
(Three Indenters, Two Objectives)
|
|
|
Eyepiece
|
20X electronic eyepiece with encoder
|
|
|
Objective
|
1X , 2X
|
|
|
Dwell Time
|
0-99s
|
|
|
Light
|
LED cold light, lightness adjustable, long working life
|
|
|
Max. Height of Specimen
|
270mm
|
|
|
Throat
|
190mm
|
|
|
Power Supply
|
AC220V, 50Hz
|
|
|
Execute Standard
|
ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
|
|
|
Dimension
|
1000x595x350mm
|
|
|
Weight
|
150kg
|
|
Product Similar
Electric Analog Universal Hardness Tester Rockwell Combined Brinell And Vickers
Model: BRV-187.5E
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
0765 259 545
Computerized Fully Automated Brinell Hardness Tester
Model: B-3000AZ
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
0765 259 545
Rockwell And Superficial Rockwell Hardness Tester With Load Cell
Model: eRSR-150TL
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
0765 259 545
Intelligent Computerized Macro Vickers Hardness Tester
Model: HVT-10C
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
0765 259 545
Computerized Digital Micro Vickers Hardness Tester
Model: HDV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Test force 10g to 1000g, can extend to 2000g.
Built-in high lightness , long life LED light source;
Built-in 5 million high-definition CCD camera, short optical path, clearer image;
Software can control machine turret, lightness, etc., generate customized test report;
On Software automatic measure the indentation and get test result.
0765 259 545
62.5 - 3000KGF Automatic Digital Brinell Hardness Tester With 8-650 HBW Test Range
Model: HB501
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
0765 259 545
Close Loop Advanced Digital Twin Rockwell Hardness Tester With Load cell design
Model: HRR-150DT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Close loop load cell design, no need install dead weights;
With Rockwell and superficial Rockwell test function;
Initial test force: 3 / 10kgf; Main test force: 15 / 30 / 45 / 60 / 100 / 150kgf;
With indenter protective device, indenter service time more longer;
Touch screen control with menu structure, very easier operation.
With hardness conversion function, on screen can display Vickers hardness value HV, Brinell hardness value HBW, Knoop hardness value HK, Superficial Rockwell hardness value HR15T, etc.
0765 259 545
