Computerized Fully Automated Brinell Hardness Tester
-
46
-
0765 259 545

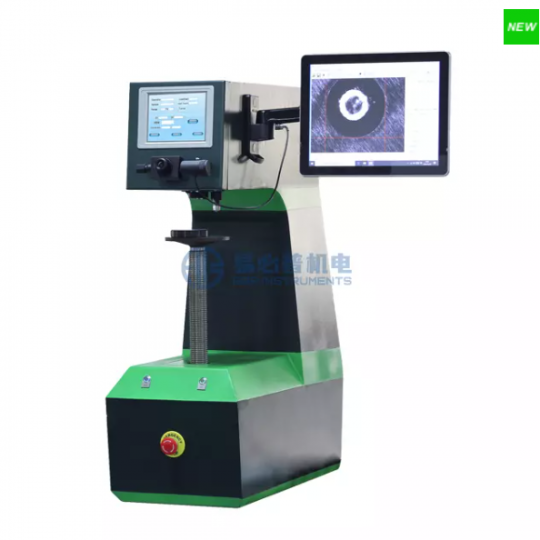

Computerized Fully Automated Brinell Hardness Tester
Model: B-3000AZ
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Model: B-3000AZ
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Computerized Fully Automated Brinell Hardness Tester
Model: B-3000AZ
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Contact for quotation: 0765 259 545
Features:
1. Automatic testing process, just press one key machine will automatic focus, automatic loading and automatic measurement and automatic get test result.
2. The test force value ranges from 31.25-3000kgf;12 kinds of Brinell scales, which can be customized by users;
3. The Z-axis rises and falls automatically. After placing the sample, it rises automatically and begins to make an indentation.
4. Closed-loop control, high precision load cell design, automatic loading - dwell - unloading, and automatic measure indentation and automatic get hardness value; And no need to install the weight, no need to install debugging, easy installation and maintenance.
5. Automatic turret, indenter position and measurement position automatic switch;
6. Dual optical path and dual touch screen design, double insurance of the quality. Even one touch screen damage machine still can work normally, greatly improved working efficiency.
7. On screen can do calibration work easily with standard hardness block.
8. Large test space, big sample can be tested;
9. More sample and test information can be set and saved; Setting parameters of password protection;
10. When measure indentation by digital eyepiece independently, the test data can save to USB disk directly in EXCEL format, easy editing and processing.
11. Digital eyepiece with encoder and objective lens structure, make measure work very easier.
12. With hardness conversion function, can convert to Rockwell, Vickers, Knoop, etc hardness value directly based on the needs.
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Technical Specifications:
Turret: Automatic turret
Z Axis: Automatic focus
Brinell Scale: HBW1/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/62.5, HBW5/250, HBW5/750, HBW10/100, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test Force: 31.25.5kgf(306.45N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(4905N), 1000kgf(7905N), 1500kgf(14710N), 3000kgf(29420N)
Convert scale: HRA, HRB, HRC, HRD, HRF, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
microscope magnification: 20X (option: 10X, 15X, 30X)
Min measuring unit: 0.1um
Hardness resolution: 0.1HBW
Dwell time: 1-99s
Hardness range: 15.9-650HBW
Camera: 5 megapixel industrial camera
Software measure mode: Support automatic measure and manual measure
Data output: Touch screen display, by USB interface can save in USB flash disk (save as Excel format)
Operation: Automatic, press one key the work table will automatic rise up, automatic loading - dwell - unloading, automatic turret move back Software automatic measure indentation and display hardness value
Executive Standard: ASTM E10, BSEN 6506, ISO 6506, GB/T231
Test sample maximum height: 400mm
Maximum throat depth: 250mm
Machine size: 700 x 340 x 970 mm
Weight: 160kg
Power supply: AC220+5%,50~60Hz
Turret: Automatic turret
Z Axis: Automatic focus
Brinell Scale: HBW1/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/62.5, HBW5/250, HBW5/750, HBW10/100, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test Force: 31.25.5kgf(306.45N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(4905N), 1000kgf(7905N), 1500kgf(14710N), 3000kgf(29420N)
Convert scale: HRA, HRB, HRC, HRD, HRF, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
microscope magnification: 20X (option: 10X, 15X, 30X)
Min measuring unit: 0.1um
Hardness resolution: 0.1HBW
Dwell time: 1-99s
Hardness range: 15.9-650HBW
Camera: 5 megapixel industrial camera
Software measure mode: Support automatic measure and manual measure
Data output: Touch screen display, by USB interface can save in USB flash disk (save as Excel format)
Operation: Automatic, press one key the work table will automatic rise up, automatic loading - dwell - unloading, automatic turret move back Software automatic measure indentation and display hardness value
Executive Standard: ASTM E10, BSEN 6506, ISO 6506, GB/T231
Test sample maximum height: 400mm
Maximum throat depth: 250mm
Machine size: 700 x 340 x 970 mm
Weight: 160kg
Power supply: AC220+5%,50~60Hz
Product Similar
Electric Analog Universal Hardness Tester Rockwell Combined Brinell And Vickers
Model: BRV-187.5E
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
0765 259 545
Rockwell And Superficial Rockwell Hardness Tester With Load Cell
Model: eRSR-150TL
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
0765 259 545
Intelligent Computerized Macro Vickers Hardness Tester
Model: HVT-10C
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
0765 259 545
Computerized Digital Micro Vickers Hardness Tester
Model: HDV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Test force 10g to 1000g, can extend to 2000g.
Built-in high lightness , long life LED light source;
Built-in 5 million high-definition CCD camera, short optical path, clearer image;
Software can control machine turret, lightness, etc., generate customized test report;
On Software automatic measure the indentation and get test result.
0765 259 545
62.5 - 3000KGF Automatic Digital Brinell Hardness Tester With 8-650 HBW Test Range
Model: HB501
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
0765 259 545
Close Loop Advanced Digital Twin Rockwell Hardness Tester With Load cell design
Model: HRR-150DT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Close loop load cell design, no need install dead weights;
With Rockwell and superficial Rockwell test function;
Initial test force: 3 / 10kgf; Main test force: 15 / 30 / 45 / 60 / 100 / 150kgf;
With indenter protective device, indenter service time more longer;
Touch screen control with menu structure, very easier operation.
With hardness conversion function, on screen can display Vickers hardness value HV, Brinell hardness value HBW, Knoop hardness value HK, Superficial Rockwell hardness value HR15T, etc.
0765 259 545
Hardness Tester
Model: HB3000-5AT
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
1) With Brinell hardness test ball indenter: 2.5mm ball indenter, 5mm ball indenter, 10mm ball indenter.
2) Closed loop load cell design, easy installation and operation;
3) Froce from 31.25kgf to 3000kgf.
4) Can optional work with camera and Brinell indentation measurement software, on PC can do automatic measurement.
5) Follow Brinell hardness test standard ISO 6506 and ASTM E10
6) With hardness conversion function, Brinell hardness to Rockwell HRC, HRA, HRB, etc.
0765 259 545
