Computerized Digital Micro Vickers Hardness Tester DV-1MW
-
678
-
0765 259 545

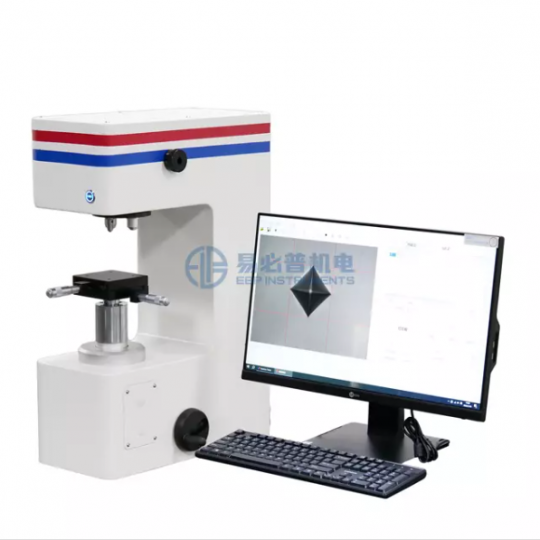

Computerized Digital Micro Vickers Hardness Tester
Model: HDV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Test force 10g to 1000g, can extend to 2000g.
Built-in high lightness , long life LED light source;
Built-in 5 million high-definition CCD camera, short optical path, clearer image;
Software can control machine turret, lightness, etc., generate customized test report;
On Software automatic measure the indentation and get test result.
Model: HDV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Test force 10g to 1000g, can extend to 2000g.
Built-in high lightness , long life LED light source;
Built-in 5 million high-definition CCD camera, short optical path, clearer image;
Software can control machine turret, lightness, etc., generate customized test report;
On Software automatic measure the indentation and get test result.
Computerized Digital Micro Vickers Hardness Tester
Model: DV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Model: DV-1MW
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Introduction:
DV-W series computerized micro Vickers hardness tester with modern design and simple style, it is a perfect combination product of machine and computer, forming a highly cost-effective micro hardness tester system. Software can Control hardness tester, measure indentation, automatic turret switch, brightness adjustment, etc. Automatic hardness measurement, it makes Vickers hardness test work more easy.
DV-W series computerized micro Vickers hardness tester with modern design and simple style, it is a perfect combination product of machine and computer, forming a highly cost-effective micro hardness tester system. Software can Control hardness tester, measure indentation, automatic turret switch, brightness adjustment, etc. Automatic hardness measurement, it makes Vickers hardness test work more easy.
Features:
1) Guided by optical cross rails to ensure high guiding accuracy;
2) Fast and smooth force transmission can be achieved by using the secondary transmission force of the rack and pinion.
3) This machine equipped with most advanced High transmission ratio high precision worm gear rod, can achieve stable continuous lifting, and greatly improved the accuracy and repeatedly of the testing process. This update is very important to improve working performance and working efficiency.
4) Built-in high lightness , long life LED light source, this design makes light source work more stable work performance.
5) Built-in 5 million high-definition CCD camera, short optical path, clearer image
6) With hardness conversion function, from HV can convert to HRA, HRB, HRC, HBW, etc scales.
7) With (HV & HK) Vickers and Knoop hardness testing capabilities.
8) Quality judgement function, through set upper and lower limit system automatic judgement the test result. Result out of setting range system will auto alarm (show in red color).
9) The test report can be customized by the user, and all test data, including indentation images, are permanently saved for easy historical query.
Main purpose and application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
1) Guided by optical cross rails to ensure high guiding accuracy;
2) Fast and smooth force transmission can be achieved by using the secondary transmission force of the rack and pinion.
3) This machine equipped with most advanced High transmission ratio high precision worm gear rod, can achieve stable continuous lifting, and greatly improved the accuracy and repeatedly of the testing process. This update is very important to improve working performance and working efficiency.
4) Built-in high lightness , long life LED light source, this design makes light source work more stable work performance.
5) Built-in 5 million high-definition CCD camera, short optical path, clearer image
6) With hardness conversion function, from HV can convert to HRA, HRB, HRC, HBW, etc scales.
7) With (HV & HK) Vickers and Knoop hardness testing capabilities.
8) Quality judgement function, through set upper and lower limit system automatic judgement the test result. Result out of setting range system will auto alarm (show in red color).
9) The test report can be customized by the user, and all test data, including indentation images, are permanently saved for easy historical query.
Main purpose and application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Model: DV-1MW
Turret: Manual
Force Selection: Manual Select
Objective: 10X (measure); 40X (measure)
Eyepiece: 10X digital eyepiece with built-in encoder
Total Magnification : 100X (measure); 400X (measure)
Testing force: 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N),
300g (2.94N), 500g (4.9N), 1000g (9.8N)
Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Conversion scale: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW
Loading speed: ≤50μm/sec
Indenter: Standard Rectangular pyramid diamond indenter (136º±0.5º)
Measuring resolution: 0.01μm
Hardness value rang: 8HV-2900HV
Loading method: Automatically (Load, dwell and unload the testing force)
Duration time: 1-99s (each step is 1 second)
Objective lens center and indenter center: Coincidence accuracy error < 1um (objective lens center position can be adjusted)
X-Y Testing Table: Dim.:100×100 mm, Max. Travel Range: 25×25mm,
Moving Resolution Ratio: 0.01mm
Test space: Maximum height: 160mm (vertical); Throat depth: 170mm (horizontal)
Light Source: Built-in high lightness long lifespan LED Cold light source
Camera: Built-in 5MP camera
Software: Software can control machine turret, lightness, measure, etc, and generate customized test report
Computer (Optional): Brand Computer
21.5 inch. display; 8 GB memory + 256 GB solid state drive , WIN10 operating system; WIFI
Machine size & N/W: 540*260*650mm 50kg
Packing size and G/W: 710*420*627mm 68kg
Power Supply: 220V ± 5%, 50/60 Hz, 600W (110V is available)
Executed Standard: GB/T4340.2, ASTM E384 & E92, EN-ISO 6507, JIS B-7734
Turret: Manual
Force Selection: Manual Select
Objective: 10X (measure); 40X (measure)
Eyepiece: 10X digital eyepiece with built-in encoder
Total Magnification : 100X (measure); 400X (measure)
Testing force: 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N),
300g (2.94N), 500g (4.9N), 1000g (9.8N)
Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Conversion scale: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW
Loading speed: ≤50μm/sec
Indenter: Standard Rectangular pyramid diamond indenter (136º±0.5º)
Measuring resolution: 0.01μm
Hardness value rang: 8HV-2900HV
Loading method: Automatically (Load, dwell and unload the testing force)
Duration time: 1-99s (each step is 1 second)
Objective lens center and indenter center: Coincidence accuracy error < 1um (objective lens center position can be adjusted)
X-Y Testing Table: Dim.:100×100 mm, Max. Travel Range: 25×25mm,
Moving Resolution Ratio: 0.01mm
Test space: Maximum height: 160mm (vertical); Throat depth: 170mm (horizontal)
Light Source: Built-in high lightness long lifespan LED Cold light source
Camera: Built-in 5MP camera
Software: Software can control machine turret, lightness, measure, etc, and generate customized test report
Computer (Optional): Brand Computer
21.5 inch. display; 8 GB memory + 256 GB solid state drive , WIN10 operating system; WIFI
Machine size & N/W: 540*260*650mm 50kg
Packing size and G/W: 710*420*627mm 68kg
Power Supply: 220V ± 5%, 50/60 Hz, 600W (110V is available)
Executed Standard: GB/T4340.2, ASTM E384 & E92, EN-ISO 6507, JIS B-7734
