Rockwell And Superficial Rockwell Hardness Tester With Load Cell eRSR-150TL
-
20
-
0765 259 545
Rockwell And Superficial Rockwell Hardness Tester With Load Cell
Model: eRSR-150TL
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Model: eRSR-150TL
Manufacturer: EBP - China
Contact for quotation: 0765 259 545
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Rockwell And Superficial Rockwell Hardness Tester With Load Cell
Model: eRSR-150TL
Manufacturer: EBP - China
Model: eRSR-150TL
Manufacturer: EBP - China

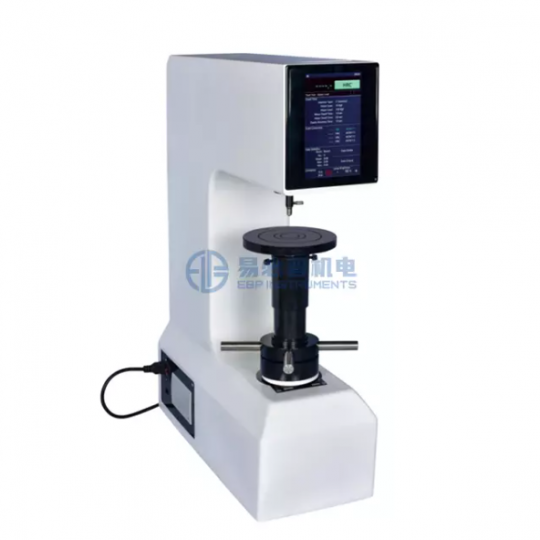

eRSR-150TL digital touch screen twin Rockwell hardness tester has high level automation, stable and reliable performance, it is equipped with sophisticated sensors so that can test data more accurate ; 8’’ large touch screen provide comprehensive data for quality control.
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Features:
1. The color touch screen will display hardness value, conversion value, test force, dwell time, indenter info. etc directly, indicator responses sensitively, show the hardness value accurately, the test value is more accurate than national standard;
2. The operating system has 14 languages: Chinese, Traditional Chinese, English, Russian, German, French, Spanish, Portuguese, Turkish, Czech, Japanese, Korean, Thai, Vietnamese;
3. Surface radius calibration function;
4. Automatic loading - dwell - unloading test force, easy operate;
5. Testing force unit can set between kgf and N.
6. Built-in printer can print test result directly;
7. On screen can display Rockwell hardness value and 4 conversion scale value in same time. Conversion scale can select from HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm (tensile strength);
8. Quality judgment function, out of range result will automatic alarm;
9. The screen sleep time can be set, and it will automatically enter the sleep state if it is not operated for a long time, saving energy and environmental protection;
10. One-time cast molding shell, stable structure and it is not easy to be out of shape. It can work under harsh environment; the shell coating adopted car paint technology with white color. it has strong scratch resistance capability and still look bright as new after use many years;
11. The screw rod adopts the fine grinding process, which ensures that the machine can be lifted smoothly and without eccentricity, make test accuracy more higher and stable.
Technical parameters：
Rockwell scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HE45Y
Conversion scale: HRA, HRB, HRC,HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm
Preliminary test force: 3kgf (29.4N) for superficial Rockwell: 10kgf (98N) for Rockwell
Total test force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
Conversion scale: HRA, HRB, HRC,HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm
Preliminary test force: 3kgf (29.4N) for superficial Rockwell: 10kgf (98N) for Rockwell
Total test force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indication Resolution: 0.1HR
Hardness value range: HRA: 20-96, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:50-115, HRM:50-115, HRR:50-115
Indication Resolution: 0.1HR
Hardness value range: HRA: 20-96, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:50-115, HRM:50-115, HRR:50-115
HR15N:70-94, HR30N:42-86, HR45N:20-77,
HR15T:67-93, HR30T:29-82, HR45T:10-72
Hardness data read: 8’’ full color touch screen
Loading method: Automatic (Load, Dwell, Unload)
Dwell time: 3-60S, each step 1 second
Data output: Built-in printer, USB port
Test space: Maximum height: 270mm; Maximum throat depth:160mm
Machine Size / N.W: 560X210x810mm (L×W×H); 100kg
Executive standard: GB/T230.2 , BSEN 6508, ASTM E18 , ISO 6508 , JJG112, EN10109
Hardness data read: 8’’ full color touch screen
Loading method: Automatic (Load, Dwell, Unload)
Dwell time: 3-60S, each step 1 second
Data output: Built-in printer, USB port
Test space: Maximum height: 270mm; Maximum throat depth:160mm
Machine Size / N.W: 560X210x810mm (L×W×H); 100kg
Executive standard: GB/T230.2 , BSEN 6508, ASTM E18 , ISO 6508 , JJG112, EN10109
