Spectrophotometer DS-1050
-
40
-
0765 259 545

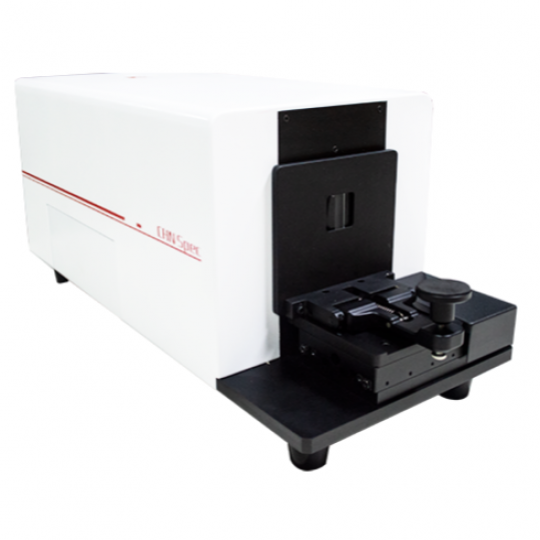

Spectrophotometer
Model: DS-1050
Manufacturer: CHN - China
Model: DS-1050
Manufacturer: CHN - China
Spectrophotometer
Model: DS-1050
Manufacturer: CHN - China
Model: DS-1050
Manufacturer: CHN - China
|
Model
|
DS-1000
|
DS-1050
|
DS-1100
|
|
Geometry
|
Dual beam D / 8 ° , SCI / SCE
|
||
|
Light source
|
Full spectrum LED
|
High precision like sunlight full spectrum LED
|
High precision analog fluorescent xenon lamp light source
|
|
Sphere diameter
|
152mm/6in
|
||
|
Wavelength range
|
400nm-700nm
|
400nm-1000nm
|
|
|
Reporting interval
|
10nm
|
2.5nm
|
|
|
Photometric range
|
0-200%, resolution 0.01%
|
||
|
Repeated measurement of 30 times of double flash White color difference (CIE LAB)
|
ΔE*ab≤0.03(Maximum) |
ΔE*ab≤0.01(Maximum) |
|
|
Inter-Instrument consistency for
reflectance measurement (CIELAB) |
0.4
|
0.25
|
|
|
Aperture plate
|
Lav (30mm lighting, 25mm measurement), the user can set the measurement area and customize the caliber of any size
|
||
|
Test conditions
|
Compliance with standards:CIE No.15,GB/T 3978,GB 2893GB/T 18833,ISO7724/1,DIN5033 Teil7,
JIS Z8722 condition C,ASTM E1164,ASTM-D1003-07
|
||
|
Sensor
|
CMOS array sensor
|
Silicon based metal oxide image sensor
|
|
|
Spectroscopic modes
|
grating
|
Ultra high precision holographic transmission volume grating
|
|
|
Image resolution
|
300dpi
|
500dpi(high resolution)
|
600dpi(Ultra high resolution)
|
|
Minimum measurement area
|
better than 0.01mm² (0.1*0.1mm)
|
better than 0.004mm² (0.06*0.06mm)
|
better than 0.0016mm² (0.04*0.04mm)
|
|
Observer
|
2 ° standard observer and 10 ° standard observer
|
||
|
light source
|
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84
|
||
|
Color space
|
L*a*b,L*C*h,Hunter Lab,Yxy,XYZ
|
||
|
Color index
|
WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube,Berger Stensby),
YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Isochromatic index milm, color fastness, Color fastness, ISO brightness, R457, a density, t density, e density, m density, hiding power, strength
|
||
|
Colour-difference formula
|
ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classification
|
||
|
Test time
|
Less than 8 seconds
|
Less than 5 seconds
|
|
|
Working temperature and humidity
|
5 ~ 40 ° C, no condensation below 80% relative humidity (at 35 ° C)
|
||
|
Storage temperature and humidity
|
-20 ~ 45 ° C, no condensation below 80% relative humidity (at 35 ° C)
|
||
|
Accessories
|
Power adapter, data cable, whiteboard
|
||
|
Interface
|
USB 3.0
|
||
*The measuring caliber is 25 * 25MM. After the instrument is calibrated, measure the BCRA white correction plate 30 times at an interval of 10 seconds
*Average value of measurement results of 12 BCRA ceramic standard color plates
*Average value of measurement results of 12 BCRA ceramic standard color plates
