Benchtop Spectrophotometer CS-821
-
42
-
0765 259 545

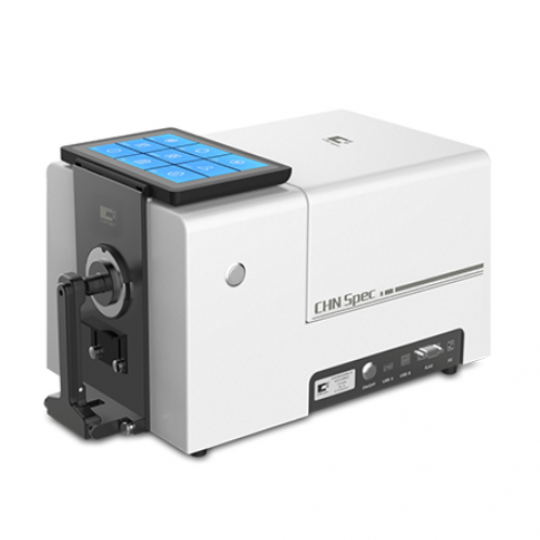

Benchtop Spectrophotometer
Model: CS-821N
Manufacturer: CHN - China
CS-821N is a highly stable benchtop spectrophotometer; the newly upgraded auto-calibration technology ensures
excellent stability of the instrument for long-term use and measurement, even in the case of drastic environmental
changes. Benchtop spectrophotometer cs-821N has two illumination sources: pulsed xenon lamp and led; with 24
standard light sources and 40+ measurement indicators, it can simulate and calculate color data under various light
sources and color indicators.
Model: CS-821N
Manufacturer: CHN - China
CS-821N is a highly stable benchtop spectrophotometer; the newly upgraded auto-calibration technology ensures
excellent stability of the instrument for long-term use and measurement, even in the case of drastic environmental
changes. Benchtop spectrophotometer cs-821N has two illumination sources: pulsed xenon lamp and led; with 24
standard light sources and 40+ measurement indicators, it can simulate and calculate color data under various light
sources and color indicators.
Benchtop Spectrophotometer
Model: CS-821N
Manufacturer: CHN - China
Model: CS-821N
Manufacturer: CHN - China
Lighting / light receiving system
Reflection: D / 8 (diffuse illumination, 8 ° direction reception),
transmission: D / 0 (diffuse illumination, vertical direction reception)
SCI (including specular reflection light) /
SCE (excluding specular reflection light) are measured at the same tim
Standards: CIE No.15, GB / T 3978, GB 2893gb / T 18833, iso7724 / 1, din503
JIS z8722 condition C, ASTM e1164, astm-d1003-07
Sensor Dual column high precision CMOS array sensor
Spectroscopic mode Concave grating
Integrating sphere diameter 152mm
Measurement wavelength range 360nm-780nm
Measurement wavelength interval 10nm
Half wave width 1nm
Reflectivity measurement range 0-200%, resolution 0.01%
Lighting source Pulsed xenon lamp and LED
UV measurement Including UV, 400nm cut-off, 420nm cut-off and 460nm cut-off
Measurement time SCI or SCE mode < 2 seconds, SCI + SCE simultaneous measurement < 4 sec
Measurement / illumination aperture
Reflection: xlav Φ 25.4mm/ Φ 30mm LAV Φ 15mm/ Φ 18mm
MAV Φ 8mm/ Φ 11mm SAV Φ 3mm/ Φ 6mm
The user can customize the caliber, and the caliber switch automatica
identifies the transmission: Φ 17mm/ Φ 25mm
Transmission measurement specification Sample width and height: unlimited, thickness: ≤ 50mm
Long term repeatability
Xlav chromaticity value: standard deviation Δ E * AB within 0.015
(for any temperature change of 20 ℃± 10 ℃, measure the white
correction plate every hour within 24 hours)
Repeatability※
ΔE*ab≤0.015，
Spectral reflectance / transmittance ≤ 0.1%
Inter device difference※※ XLAV ΔE*ab 0.25(based on the average of 12 color plates of BCRA series at
Standard observer 2 ° standard observer and 10 ° standard observer
Observation light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,
Language Simplified Chinese, Spanish, Spanish, Spanish, Portuguese, Portugues
Show contents
Spectral data, spectrogram, chroma data, color difference data, color differenc
pass / fail judgment, simulated color, color evaluation, haze, liquid chroma, c
Color space L*a*b,L*C*h,Hunter Lab,Yxy,XYZ
Color index
WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube,Berger Sten
YI(ASTMD1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),
Isochromatic index milm, color fastness, color fastness, ISO brightness, R
a density, t density, e density, m density, APHA / Hazen / Pt Co, Gardner in
Saybolt index,ASTM Color, haze, total transmittance, hiding power, force, st
Colour-difference formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classifica
Storage space 8GB
中
Screen size 7-inch capacitive touch screen
operating system Android
Power Supply DC regulated power supply
Operating temperature and humidity range 5 ~ 40 ° C, relative humidity below 80% (at 35 ° C), no condensation
Storage temperature and humidity range -20 ~ 45 ° C, relative humidity below 80% (at 35 ° C), no condensation
Enclosure
Power adapter, data cable, transmission fixture, software USB flash disk, blac
white board, green board, 0% calibration shading cover (820n attached
30mm diameter board,18mm diameter board, 11mm diameter board
6mm diameter board,support table, cuvette, damping handle
Optional Accessories
Heating transmission fixture (including control circuit), vertical suppor
pneumatic ejector rod(including control circuit), small sample clamping acce
pull rod box,European standard plug and American standard plug
Reflective cuvette support, corrosion-resistant protective plate (non remov
fiber test box, film clamp and micro transmission clamp
Interface RS-232、USB、USB-B
Other
1. Camera viewfinder positioning;
2. The instrument can measure laterally, upward and downward (using acce
3. Automatic temperature and humidity compensation function
Reflection: D / 8 (diffuse illumination, 8 ° direction reception),
transmission: D / 0 (diffuse illumination, vertical direction reception)
SCI (including specular reflection light) /
SCE (excluding specular reflection light) are measured at the same tim
Standards: CIE No.15, GB / T 3978, GB 2893gb / T 18833, iso7724 / 1, din503
JIS z8722 condition C, ASTM e1164, astm-d1003-07
Sensor Dual column high precision CMOS array sensor
Spectroscopic mode Concave grating
Integrating sphere diameter 152mm
Measurement wavelength range 360nm-780nm
Measurement wavelength interval 10nm
Half wave width 1nm
Reflectivity measurement range 0-200%, resolution 0.01%
Lighting source Pulsed xenon lamp and LED
UV measurement Including UV, 400nm cut-off, 420nm cut-off and 460nm cut-off
Measurement time SCI or SCE mode < 2 seconds, SCI + SCE simultaneous measurement < 4 sec
Measurement / illumination aperture
Reflection: xlav Φ 25.4mm/ Φ 30mm LAV Φ 15mm/ Φ 18mm
MAV Φ 8mm/ Φ 11mm SAV Φ 3mm/ Φ 6mm
The user can customize the caliber, and the caliber switch automatica
identifies the transmission: Φ 17mm/ Φ 25mm
Transmission measurement specification Sample width and height: unlimited, thickness: ≤ 50mm
Long term repeatability
Xlav chromaticity value: standard deviation Δ E * AB within 0.015
(for any temperature change of 20 ℃± 10 ℃, measure the white
correction plate every hour within 24 hours)
Repeatability※
ΔE*ab≤0.015，
Spectral reflectance / transmittance ≤ 0.1%
Inter device difference※※ XLAV ΔE*ab 0.25(based on the average of 12 color plates of BCRA series at
Standard observer 2 ° standard observer and 10 ° standard observer
Observation light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,
Language Simplified Chinese, Spanish, Spanish, Spanish, Portuguese, Portugues
Show contents
Spectral data, spectrogram, chroma data, color difference data, color differenc
pass / fail judgment, simulated color, color evaluation, haze, liquid chroma, c
Color space L*a*b,L*C*h,Hunter Lab,Yxy,XYZ
Color index
WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube,Berger Sten
YI(ASTMD1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),
Isochromatic index milm, color fastness, color fastness, ISO brightness, R
a density, t density, e density, m density, APHA / Hazen / Pt Co, Gardner in
Saybolt index,ASTM Color, haze, total transmittance, hiding power, force, st
Colour-difference formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classifica
Storage space 8GB
中
Screen size 7-inch capacitive touch screen
operating system Android
Power Supply DC regulated power supply
Operating temperature and humidity range 5 ~ 40 ° C, relative humidity below 80% (at 35 ° C), no condensation
Storage temperature and humidity range -20 ~ 45 ° C, relative humidity below 80% (at 35 ° C), no condensation
Enclosure
Power adapter, data cable, transmission fixture, software USB flash disk, blac
white board, green board, 0% calibration shading cover (820n attached
30mm diameter board,18mm diameter board, 11mm diameter board
6mm diameter board,support table, cuvette, damping handle
Optional Accessories
Heating transmission fixture (including control circuit), vertical suppor
pneumatic ejector rod(including control circuit), small sample clamping acce
pull rod box,European standard plug and American standard plug
Reflective cuvette support, corrosion-resistant protective plate (non remov
fiber test box, film clamp and micro transmission clamp
Interface RS-232、USB、USB-B
Other
1. Camera viewfinder positioning;
2. The instrument can measure laterally, upward and downward (using acce
3. Automatic temperature and humidity compensation function
