Incubator

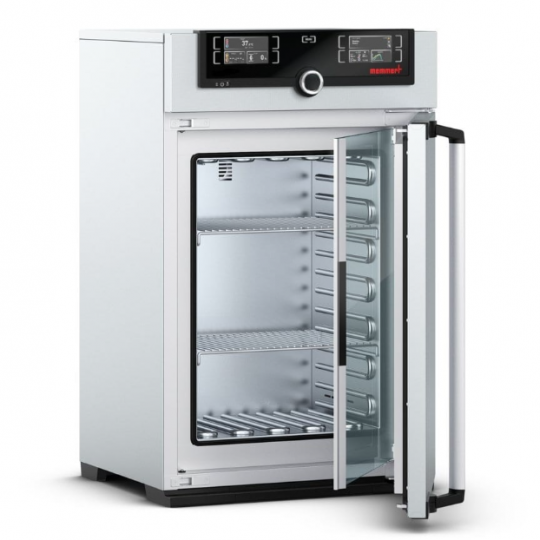

Incubator IN260plus

1. Volume: 256 liters
2. Internal Dimensions: 640 x 800 x 500 mm (W x H x D)
3. External Dimensions: 824 x 1183 x 684 mm (W x H x D)
4. Shelves Supplied: 2
5. Maximum Shelf Stops: 9
6. Operating Temperature Range: Minimum 5°C above ambient temperature to 80°C
7. Setpoint Accuracy: ±0.1°C
8. Temperature Probes: 2 Pt100 temperature probes according to DIN Class A, used for displaying operating temperature and alerts
9. Control Panel: ControlCOCKPIT with dual high-resolution TFT color displays. Multi-functional PID microprocessor controller
10. Language Settings on Control Panel: German, English, French, Spanish, Polish, Czech, Hungarian
11. Time Settings: Countdown timer adjustable from 1 minute to 99 days
12. HeatBALANCE Function: Adjusts the heating level for balance between the top and bottom of the chamber within a range from -50% to +50%
13. SetpointWAIT Function: Activates once the temperature reaches the setpoint
14. Calibration: Three freely selectable temperature values for calibration
15. Adjustable Parameters: Temperature (°C or °F), convection door position, time program, time zone
16. Sterilization Program: Fixed sterilization program (4 hours at 160°C) for chamber sterilization, no sterilization for samples
17. Air Convection: Natural air convection
18. Air Mixture Adjustment: 10% pre-heated air intake adjustment
19. Power Failure Program: Stored programs in case of power loss
20. Program Management: AtmoCONTROL software on USB flash drive for programming, managing, and transferring programs via Ethernet or USB interface
21. Control Panel with USB Port: For downloading programs, reading values, and activating user settings
22. Data Display: Displays saved data (up to 10,000 values, approximately 1 week of data)
23. Ethernet Interface: For reading recorded data, uploading programs, and online recording
24. Temperature Control: Mechanical temperature limit switch (TB) with Class 1 protection level according to DIN 12 880, automatically switches off when the temperature exceeds approx. 200°C above the setpoint. Over-temperature control TWW, protection level 3.1, or adjustable limit switch (TWB) with protection level 2, selectable via the screen
25. PID Control: With self-diagnosis system
26. Alarm: Audible and visual alarms
27. Door: Stainless steel fully insulated door with 2-point locking, inner glass door
28. Outer Structure: Scratch-resistant, durable stainless steel, galvanized steel back panel
29. Internal Memory: Capable of storing at least 10 years of data
30. Air Safety: 100% AtmoSAFE air safety
31. Connectivity: Ethernet LAN, USB
32. Power Supply: 230V, 50/60Hz
33. Power Consumption: Approximately 1700 W
34. Ambient Temperature: 5 – 40°C
35. Humidity: Maximum 80% RH, non-condensing
