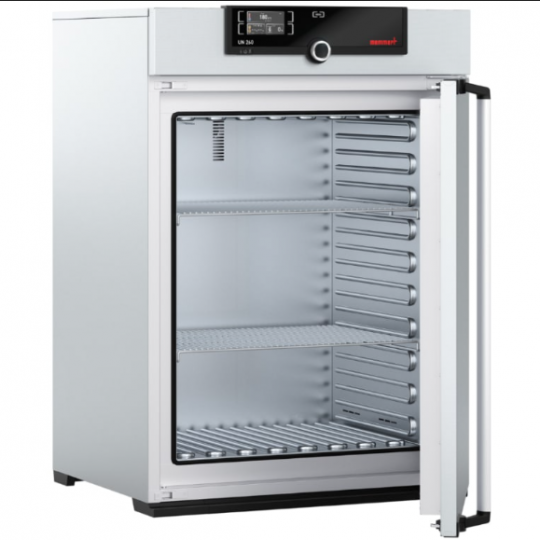

IN110plus Incubator

IN110plus Incubator

1. Volume: 108 liters
2. Operating Temperature Range: 5°C above ambient temperature to 80°C
3. Setpoint Accuracy: ±0.1°C
4. Temperature Probes: 2 Pt100 Class A temperature probes
5. Language Settings: German, English, Spanish, French, Polish, Czech, Hungarian
6. Controller: Dual display screens with a multi-functional digital PID microprocessor controller, featuring a high-definition TFT color display
7. Time Settings: Digital countdown timer with adjustable time from 1 minute to 99 days
8. Standby Mode: Progress time is only counted once the set temperature is reached
9. Calibration: Three freely selectable temperature values for calibration
10. Adjustable Parameters: Temperature (°C or °F), convection door position, time program, time zone, summer/winter setting
11. Sterilization Program: Fixed sterilization program (4 hours at 160°C) for sterilizing the chamber, adjustable via the display
12. Air Convection: Natural air convection
13. Pre-heated Air Mixture Adjustment: Adjustable air intake lid for pre-heated air mixture
14. Ventilation: Connection to air intake lid
15. Power Failure Program: Stored programs in case of power loss
16. Program Management: Software on USB flash drive for programming, managing, and transferring programs via Ethernet or USB interface
17. Temperature Control: Mechanical temperature limit switch (TB), Class 1 protection level according to DIN 12 880, automatically switches off when the temperature exceeds approx. 200°C above the setpoint
18. Over-temperature Control: TWWW, protection level 3.1, or adjustable limit switch (TWB) with protection level 2, selectable via the screen
19. Integrated Over/Under Temperature Control: "AFS" with automatic operation within pre-set tolerance range; alarm for overheating or underheating, automatic heating cut-off in case of overheating, and automatic cooling cut-off if the set temperature is not reached
20. Self-diagnostics: For fault analysis
21. Audible and Visual Alarms
22. Insulated Door: Stainless steel door with 2-point locking (lockable pressure door)
23. Inner Glass Door
24. Interior: Made of easy-to-clean stainless steel, reinforced with an integrated frame system with heating and 4-sided protection
25. Exterior: Galvanized steel on the back
26. Power Supply: 230V ± 10%, 50/60Hz
27. Internal Dimensions (WxHxD): 560 x 480 x 400 mm
28. External Dimensions (WxHxD): 745 x 864 x 584 mm
