Datacolor 45IR

Datacolor 45IR

Datacolor 45IR


Ứng dụng:

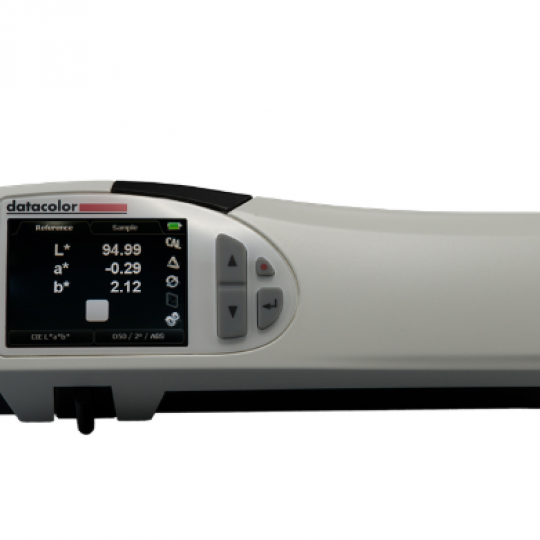

Datacolor 45IR

  1. Instrument Type: Portable Spectrophotometer
  2. Measurement Geometry: 0º:45º x according to DIN 5033
  3. Light Source: Tungsten
  4. Wavelength Range: 380 to 1100 nm
  5. Effective Bandwidth: 10 nm
  6. Wavelength Resolution: 3.3 nm
  7. Spectral Analyzer: 256 pixel diode array
  8. Color Repeatability: Density: 0.01D, Colorimetric: 0.3 CIELab dEab, Near IR: 0.3%R (700 to 1000 nm)
  9. Inter-Instrument Agreement: Density: 0.01D, Colorimetric: 0.3 CIELab dEab, Near IR: +/-0.5%R (700 to 1000 nm)
  10. Aperture Plates: 3mm measurement
  11. Operating Environment: Temperature: 0º to 40º C, Humidity: 20-85% RH, non-condensing
  12. Interface: RS232
  13. Weight: 1.0 lbs (480g)
  14. Dimensions: 2.6 x 2.2 x 7.5 (65 x 55 x 190mm)
  15. Power Requirements: 7.5DC (from PS)/4.8DC (from BAT)
  16. Power Consumption: 2.0A (from PS)/2100mAh (from BAT)
  17. Storage: 0º to 40º C
  18. Data Interface: USB
  19. Spectrometer Principle: Monolithic, compact spectrophotometer with imaging grating
  20. Battery: Long Life NiMH
  21. Effective Bandwidth: 10nm
