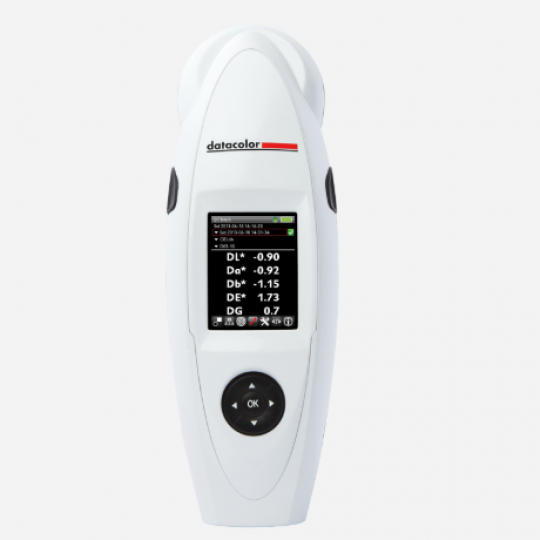

Datacolor 45 Family

Datacolor 45 Family

Datacolor 45 Family


Ứng dụng:

Datacolor 45 Family

  1. Instrument Type: Portable Spectrophotometer
  2. Measurement Geometry: 45° illumination, 0° viewing
  3. Light Source: LED solid-state circumferential illumination
  4. Wavelength Range: 400 nm - 700 nm
  5. Effective Bandwidth: 10nm
  6. Spectral Analyzer: Dual 256 diode array
  7. 20 Read Repeatability (on white ceramic tile using double flash): < 0.01 Eab
  8. Inter-instrument Agreement (CIELAB): 0.15 Eab avg of 12 BCRA tiles, 0.25 E*ab max on any BCRA tile
  9. Aperture Size: MAV 11 mm target window (8 mm measurement)
  10. Functional Operating Environment: 10 to 40°C up to 85% RH, non-condensing
  11. Display: Color LCD Backlit (2.8", 240 x 320 pixels)
  12. Weight: 1.8 lbs (816 g)
  13. Power Requirements: 5Vdc, 3.2A (input to the 45), 100-240 VAC (input to the AC power adapter), 50/60Hz, 0.6A input
  14. Power Consumption: 3.2A
  15. Data Interface: USB, Bluetooth wireless
  16. Spectrometer Principle: Master concave holographic grating
  17. Battery: Rechargeable Li-Ion > 2,000 measures/charge
  18. Gloss Repeatability: +/- 0.1 GU from 1-10; +/- 0.2 GU from 10-100
  19. Gloss Reproducibility: +/- 0.5 GU from 1-10, +/- 1 GU from 10-100
  20. Color Systems: CIELab, CIELch, Lab (h), XYZ, Yxy
  21. Color Difference: E*, E (h), E94, ECMC (2:1, 1:1, adjustable l:c), E2000
  22. Indices: Metamerism, CIE, Whiteness (CIE and E313), Yellowness (D1925 and E313)
  23. Illuminants: D50, D55, D65, D75, A, C, U3000, Horizon, F2, F7, F11
  24. Data Storage: > 2,000 standards with tolerances, max 10,000 batches
  25. Languages: English, French, German, Portuguese, Simplified Chinese, Spanish
  26. Gloss: Absolute, Difference - (60 gloss)
