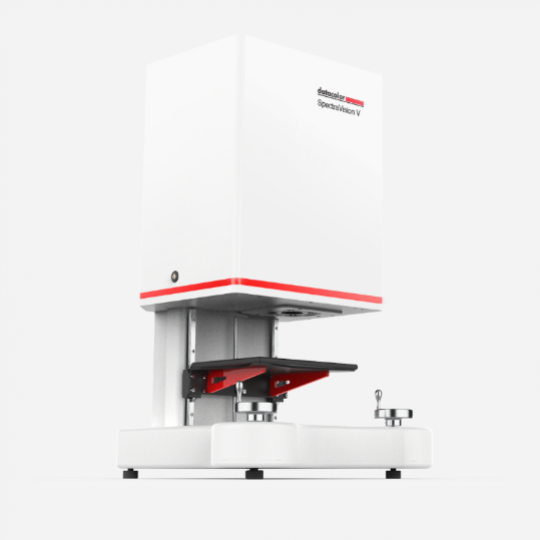

Datacolor SpectraVision

Datacolor SpectraVision

Ứng dụng:

Spectral Analyzer: Hyperspectral imaging assembly with 31 narrow bands covering 400 to 700 nm, scientific 90 db camera with sCMOS sensor.
Measuring Geometry: Diffuse illumination, 8° viewing angle in conformance with CIE publication No. 15.2 Colorimetry.
Illumination Source: Pulsed xenon, filtered to provide D65 illumination including UV component.
Sphere: Diameter 152 mm / 6.0 inches, Barium coated.
Specular Port: Automated, specular included or specular excluded.
Wavelength Range: 400 - 700 nm.
Photometric Range: 0 to 200%.
Wavelength Interval: 10 nm.
Read Repeatability on White Tile Using Two Flashes (CIELAB): 0.03 dE (max).
Inter-instrument Agreement - Reflectance Measurements (CIELab):
0.25 (max), 0.15 (avg)
Automated, Adjustable UV Calibration: Yes.
UV Cutoff Filters: 400 nm; 420 nm; 460 nm.
Aperture Configuration: Square, 25 mm illuminated / 22.7 mm viewed.
Image Resolution: 821 x 821.
Effective Pixel Size: 27.6 micrometers.
Sample Viewing Camera: Yes.
Vertical Mount: Yes or No
Transmittance: No.
Output: QTX2, Reflectance Hypercube, QTX.
Operating Software: SpectraVision Horizontal, SpectraVision Vertical.
