Kjeldahl Digestor SH220F

Kjeldahl Digestor SH220F

Kjeldahl Crusher SH220F
Model: SH220F
Manufacturer: Hanon
Origin: China

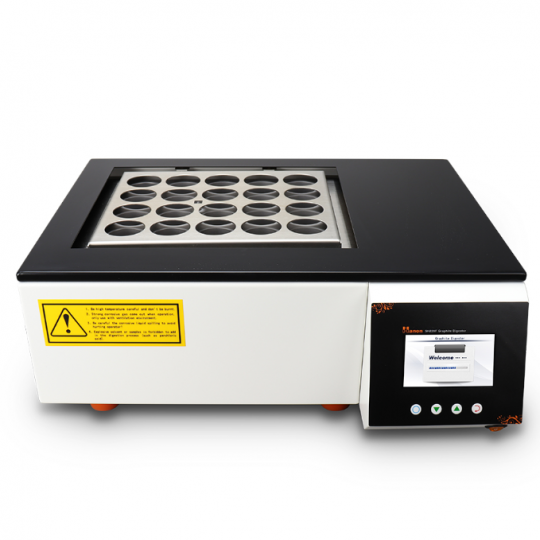

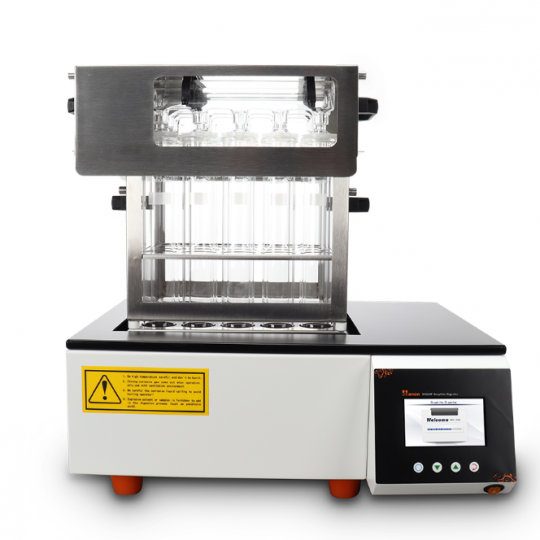

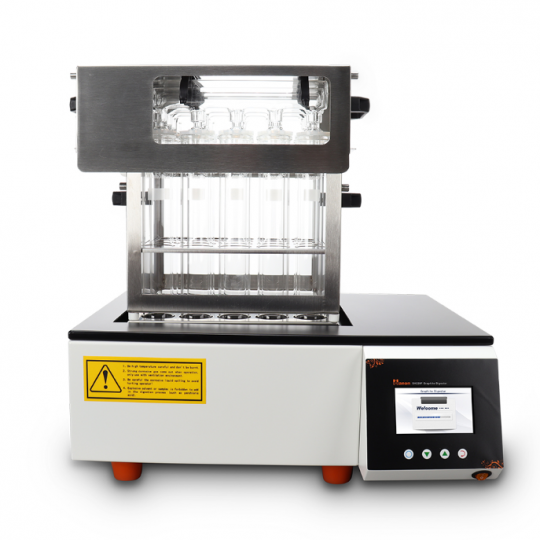

Hanon SH220F graphite digestor has the advantages of fast, efficient and convenient digestion. It is suitable for food, pharmaceutical, agricultural and other industries, as well as universities and scientific research departments to digest soil, feed and other samples before chemical analysis.

Ứng dụng:

Kjeldahl Crusher SH220F
Model: SH220F
Manufacturer: Hanon
Origin: China

The SH220F has two temperature control modes: curve heating and linear temperature heating. It can edit and store 10 groups of digestion programs. Each group can set up a segment temperature and time gradient of up to 5 to meet different experimental needs of users.
SH220F
Graphite block have longer life after special anti-oxidation processing.
It adopt advanced PID temperature control technology, high accuracy heating up to 400℃ only cost 20minutes.

Technical Parameter



SH420F

SH220F

Temperature range

Room temperature +5 - 450℃

·

Temperature accuracy

±1℃

·

Heating method

Infrared heating and high-purity graphite conduction

·

Heating insulation method

Unique air duct insulation technology

·

Digestion tube capacity

300mL

·

Capacity per batch

20pcs/batch

·

Power supply

220 VAC±10% 50HZ

·

Power

3600W

·

Dimensions

515mmX458mmX730mm

515mmX421mmX211mm

Net weight

40Kg

25Kg
