Datacolor Spectro 1000 Family

Datacolor Spectro 1000 Family

Datacolor Spectro 1000 Family

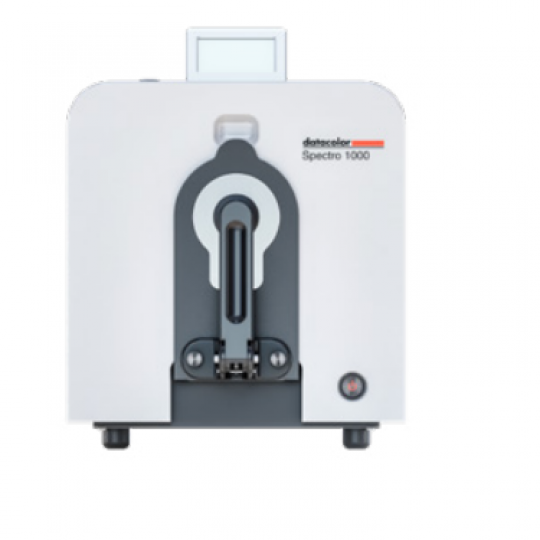

The Datacolor Spectro 1000 series is a family of close-tolerance benchtop spectrophotometers designed for high efficiency and confidence in color formulation and quality control.




  • Datacolor Spectro 1000: Standard true close-tolerance color measurement instrument.

  • Datacolor Spectro 1000V: Ideal for measuring unusual sample size or type, as well as operations requiring high throughput.

  • Datacolor Spectro 1000X: Aperture upward facing instrument, ideal for liquid, paste, powder, and granular samples.

  • Datacolor Spectro 1050: Flexible measurement in either reflectance or transmittance mode.


Ứng dụng:

  • Instrument Type: Dual beam d/8° spectrophotometer.
  • Illumination Source: Pulsed xenon filtered to approximate D65.
  • Sphere Diameter: 152mm/6in.
  • Wavelength Range: 360 nm - 700 nm.
  • Reporting Interval: 10 nm.
  • Photometric Range: 0-200%.
  • Spectral Analyzer: SPX Analyzer.
  • Read Repeatability on White Tile Using Double Flash (CIELAB): 0.01 (max).
  • Inter-instrument Agreement: Reflectance Measurements (CIELAB): 0.08 (avg), 0.15 (max).
  • Sample Temperature: $0.9°F/+0.5°C accuracy.
  • LAV Aperture: Yes.
  • IR Sensor: Accuracy $0.9°F/+0.5°C.
  • Lens: 4 position auto-zoom.
  • Aperture Plates: 3 standard – LAV (30mm illuminated, 26mm measured), SAV (9mm illuminated, 5mm measured), USAV (6.6mm illuminated, 2.5mm measured). 2 optional – MAV (20mm illuminated, 16mm measured), XUSAV (3.0mm illuminated, 2.5mm measured).
  • Aperture Detection: Yes, automated, adjustable.
  • UV Calibration: Yes.
  • UV Cutoff Filters: 400 nm, 420 nm.
  • Transmittance: No.
  • Inter-instrument agreement - regular transmittance at 550 nm: No.
  • Inter-Instrument agreement - transmission haze measurements: No.
  • Transmission sampling aperture size: No.
  • Operating Environment: Temperature 5°C to 40°C, Max Relative Humidity 20% - 85% non-condensing, Recommended Relative Humidity 50% +/- 15% non-condensing
