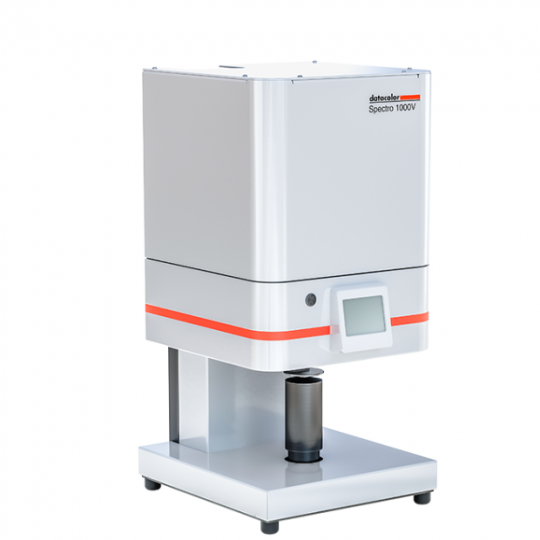

Datacolor Spectro 1000V

Datacolor Spectro 1000V

Datacolor Spectro Benchtop Spectro Colorimeter
Model: 1000V
P/N: 1030-1642
Manufacturer: Datacolor
Contact for quotation: 0765 259 545
The close tolerance benchtop spectrophotometer is designed with high performance and reliability for color matching and quality control in the Textile, Plastic, Paint and Coating industries, etc.

Ứng dụng:

Datacolor Spectro Benchtop Spectro Colorimeter
Model: 1000V
P/N: 1030-1642
Manufacturer: Datacolor
Instrument Type: Dual Beam D/8° Spectrophotometer
Illuminant Source: Pulsed Xenon Lamp, Filtered to Simulate D65 Light
Integrating Sphere Diameter: 152 mm / 6 inches
Wavelength Range: 360 nm - 700 nm
Reporting Interval: 10 nm
Spectral Range: 0-200%
Spectral Analyzer: SPX Analyzer
Repeatability 20 times on white tile with double flash (CIELAB)*: 0.01 (maximum)
Inter-instrument Correlation - Reflectance Measurement (CIELAB)*: 0.08 (average); 0.15 (max)
Sample temperature: LAV aperture
IR sensor accuracy: ±0.9°F / ±0.5°C
Lens: 4-level auto zoom
Aperture plate: 3 standards: LAV (30 mm illumination, 26 mm measurement), SAV (9 mm illumination, 5 mm measurement), USAV (6.6 mm illumination, 2.5 mm measurement); : MAV (20 mm illumination, 16 mm measurement), XUSAV (3.0 mm illumination, 2.5 mm measurement)
Aperture recognition: Yes
Automatic UV calibration, adjustable: Yes
UV cut-off filter: 400 nm; 420 nm; 460 nm
Remote measurement button: Yes
Sample positioning camera: Yes
Transmittance measurement: No
Inter-instrument similarity – transmittance at 550 nm: No
Inter-instrument similarity – transmittance measurement: No
Aperture size at transmittance: No
Operating environment: Temperature: 5°C to 40°C, maximum relative humidity 20%-85% non-condensing. Recommended: 50% ±15% relative humidity non-condensing
Vertical Mount: Yes
Physical Specifications:
Color Display: 3.5-inch RGB LCD
Display Resolution: 320x240 pixels
Weight: 54.5 lbs (24.7 kg)
Dimensions: Height: 25.0” (63.5 cm), Width: 12.2” (39.9 cm), Depth: 16.3” (41.4 cm)
