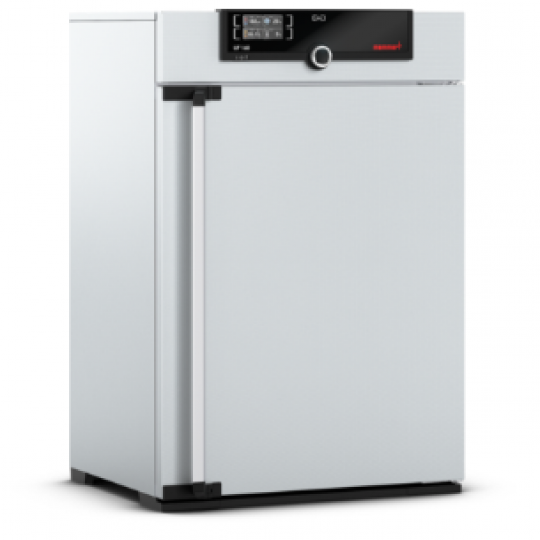

Oven UF160

UF160 Incubator

1. Volume: 161 liters
2. Internal Dimensions: 560 x 720 x 400 mm (W x H x D)
3. External Dimensions: 745 x 1104 x 584 mm (W x H x D)
4. Shelves Supplied: 2
5. Maximum Shelf Stops: 8
6. Operating Temperature Range: Minimum 10°C above ambient temperature to 300°C
7. Setpoint Accuracy: Up to 99.9°C; 0.1°C, from 100°C; 0.5°C
8. Temperature Probes: Pt100 DIN Class A
9. Air Convection: Fan-assisted convection with 10% adjustable step
10. Control Panel: ControlCOCKPIT with one high-resolution TFT color display. Multi-functional PID microprocessor controller
11. Language Settings on Control Panel: German, English, French, Spanish, Polish, Czech, Hungarian
12. Time Settings: Countdown timer adjustable from 1 minute to 99 days
13. SetpointWAIT Function: Activated when the temperature reaches the setpoint
14. Calibration: Three freely selectable temperature values for calibration
15. Adjustable Parameters: Temperature (°C or °F), convection air door position, time program, time zone
16. Air Mixture Adjustment: 10% pre-heated air intake adjustment
17. Power Failure Program: Stored programs in case of power loss
18. Temperature Control: Over-temperature control by electronics and mechanical temperature limit switch (TB), Class 1 protection according to DIN 12 880, automatically switches off when the temperature exceeds approx. 200°C above the setpoint
19. Self-Diagnosis: For error analysis
20. Network Interface: Ethernet connection
21. Door: Stainless steel fully insulated door with 2-point locking
22. Outer Structure: Scratch-resistant, durable stainless steel, galvanized steel back panel
23. Power Supply: 230V, 50/60Hz
24. Power Consumption: Approximately 3200 W
25. Ambient Temperature: 5 – 40°C
26. Humidity: Maximum 80% RH, non-condensing
