Opacity Meter Th-09
-
33
-
0765 259 545

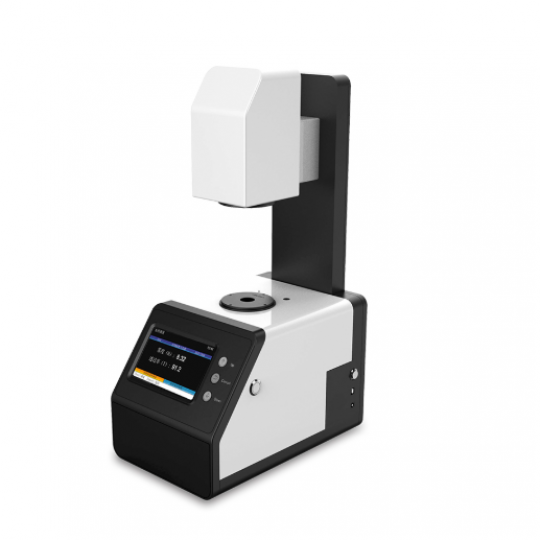

Opacity Meter
Model: Th-09
Manufacturer: CHN - China
Th-09/100/110 Haze Meter complies with ISO & ASTM double standards and is equipped with
double caliber (21mm / 7mm). It is suitable for one-stop measurement solution of haze and
transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel
and touch screen
Model: Th-09
Manufacturer: CHN - China
Th-09/100/110 Haze Meter complies with ISO & ASTM double standards and is equipped with
double caliber (21mm / 7mm). It is suitable for one-stop measurement solution of haze and
transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel
and touch screen
Opacity Meter
Model TH-09 TH-100 TH-110
Light source CIE-A,CIE-C CIE-A,CIE-C,CIE-D65
Follow standards ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Measurement parameters
Haze and transmittance under ASTM standard
Haze and transmittance under ASTM and ISO double standards
Spectral response CIE spectral function y / V（ λ)
Optical path structure 0/d
Measure Aperture 21mm 21mm 21mm,7mm
Measurement Range 0-100%
Resolution 0.01%
Haze Repeatability 0.1 0.08 0.05
Sample size Thickness≤145mm
Display 5-inch TFT LCD 5-inch TFT LCD 7-inch touch screen, Android system
Memory 10000 values 20000 values Mass storage
Interface USB interface
CS-720 Clarity And Haze … CS-700 Color and Haze …
Power Supply DC12V/3A
Working temperature 5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation
Storage temperature -20 ℃ ~ 45 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation
Size (LxWxH) Length x width x height:310mmX215mmX540mm
Weight 6kg
Standard configuration PC management software(Haze QC)
Optional Measuring fixture, haze standard plate customized aperture
Light source CIE-A,CIE-C CIE-A,CIE-C,CIE-D65
Follow standards ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Measurement parameters
Haze and transmittance under ASTM standard
Haze and transmittance under ASTM and ISO double standards
Spectral response CIE spectral function y / V（ λ)
Optical path structure 0/d
Measure Aperture 21mm 21mm 21mm,7mm
Measurement Range 0-100%
Resolution 0.01%
Haze Repeatability 0.1 0.08 0.05
Sample size Thickness≤145mm
Display 5-inch TFT LCD 5-inch TFT LCD 7-inch touch screen, Android system
Memory 10000 values 20000 values Mass storage
Interface USB interface
CS-720 Clarity And Haze … CS-700 Color and Haze …
Power Supply DC12V/3A
Working temperature 5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation
Storage temperature -20 ℃ ~ 45 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation
Size (LxWxH) Length x width x height:310mmX215mmX540mm
Weight 6kg
Standard configuration PC management software(Haze QC)
Optional Measuring fixture, haze standard plate customized aperture
Product Similar
Colorimeter
Model: CS 720
Manufacturer: CHN - China
CS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance
and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
Download literature
Front Front side
Definition measurement parameters
7-inch capacitive touch screen for more convenient operation
Android operating system
Follow ASTM and ISO standards
It has a comprehensive color measurement function in the industry
0765 259 545
Spectrophotometer
Model: CS-390
Manufacturer: CHN - China
Contact for quote: 0765 259 545
0765 259 545
Spectrophotometer
Model: DS-1000
Manufacturer: CHN - China
Contact for quote: 0765 259 545
0765 259 545
Benchtop Spectrophotometer
Model: CS-821N
Manufacturer: CHN - China
CS-821N is a highly stable benchtop spectrophotometer; the newly upgraded auto-calibration technology ensures
excellent stability of the instrument for long-term use and measurement, even in the case of drastic environmental
changes. Benchtop spectrophotometer cs-821N has two illumination sources: pulsed xenon lamp and led; with 24
standard light sources and 40+ measurement indicators, it can simulate and calculate color data under various light
sources and color indicators.
0765 259 545
Spectrophotometer
Model: DS-700D
Manufacturer: CHN - China
Contact for quote: 0765 259 545
0765 259 545
