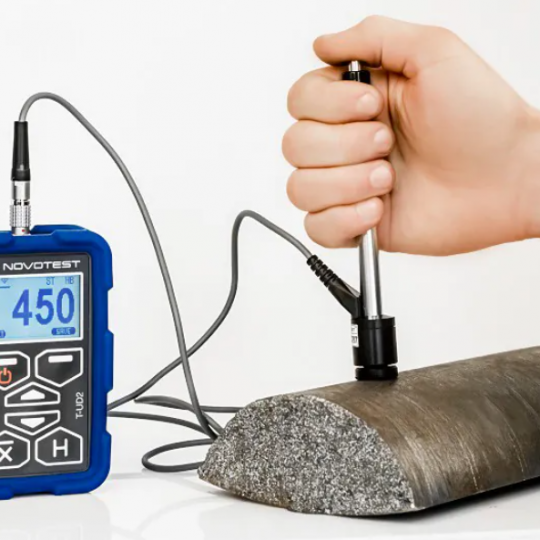

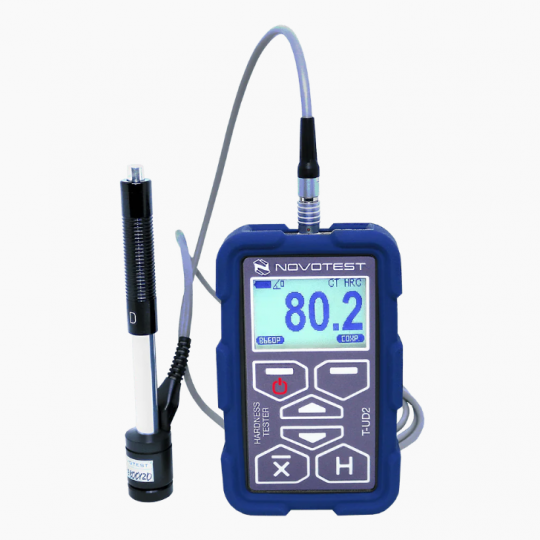

Leeb Hardness Tester NOVOTEST T-D2

Leeb Hardness Tester NOVOTEST T-D2

Leeb Hardness Tester NOVOTEST T-D2
Model: T-D2
Manufacturer: NOVOTEST - Ukraine
Contact for quotation: 0765 259 545
The Leeb hardness tester compliant with ASTM A956, is the world’s most popular metal hardness testing method due to its simplicity and ease of use, requiring no special skills. It works well with low alloy steels, stainless steels, and non-ferrous metals, and is ideal for bulk products without extensive surface preparation.
Wide range of hardness measurement
Allows to test the products with coarse, non-uniform structure (castings, forgings)
Very ease and simplicity in setup and operation
Reasonable price (lower in comparison with the ultrasonic hardness tester)
User can save the results of hardness measurements into the internal memory of the device and after that, transfer them to the PC. Device allows user to operate in a wide range of the temperature. Hardness tester T-D2 has a brightness high contrast display. Device also has calibration modes for hardness testing of wide range of metals and alloys.

Ứng dụng:

Leeb Hardness Tester NOVOTEST T-D2
Model: T-D2
Manufacturer: NOVOTEST - Ukraine
Contact for quotation: 0765 259 545
Measurement hardness range:
Rockwell, HRC
Brinell, HB
Vickers, HV
Tensile strength, MPa
User calibrations
Factory calibrations:
– HRC: 20~70
– HB: 90~650
– HV: 100~750
– Tensile strength MPa: 370~1740
– HL: 300~800
User calibrations for any scale and range (for example: 1-3000HV)
Measurement accuracy
HRC: 2HRC
HB: 10HB
HV: 15HV
HLD: 4HLD
Hardness scale
Leeb probe – HRC, HB, HV, HL, MPa
Additional custom scales for calibration.
Materials
Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, aluminum, cast iron.
Additional custom scales and materials for calibration.
Standards
ASTM A 956
ASTM E 140
ASTM A 370
ISO 16859
DIN 50156
GB/T 17394
JB/T 9378
ISO 18265
PC cable connection
Online – NOVOTEST.INFO/USB-connect
Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App
T-D2 – No
T-D2 (Lab) – Yes
Storage capacity of measurement results
T-D2 – 256
T-D2 (Lab) – 256 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Language
English
Spanish
Portuguese
French
Russian
*additional languages available by request
Dimensions, mm    122*65*23
Operating temperature range, ° C    -20 to +40
Power supply    2pcs AA batteries
Batteries life, not less, h    20
Weight of electronic unit with batteries, no more, kg    0.2
