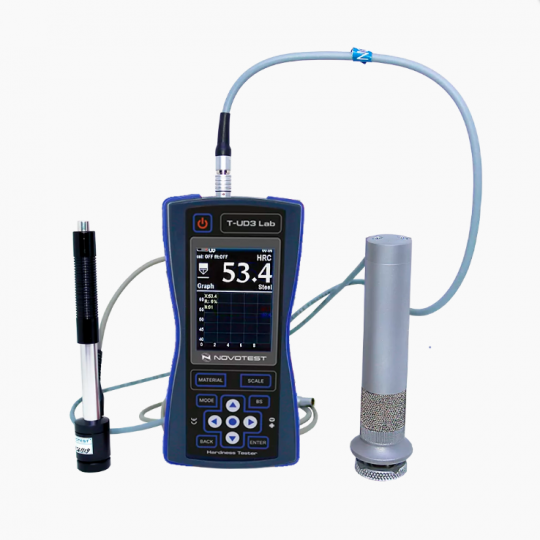

Combined Hardness Tester NOVOTEST T-UD3

Combined Hardness Tester NOVOTEST T-UD3

Combined Hardness Tester
Model: T-UD3
Manufacturer: NOVOTEST - Ukraine
Contact for quote: 0765 259 545
Combined hardness tester combines two methods of measuring hardness: Ultrasonic Contact Impedance (ASTM A1038) and Leeb (ASTM A956). This makes the device the most versatile portable device as it can be.

Ứng dụng:

Combined Hardness Tester
Model: T-UD3
Manufacturer: NOVOTEST - Ukraine
Contact for quote: 0765 259 545
- UCI probe types :
1kgf (10N) 2.2 lbf
5kgf (50N) 11lbf
10kgf (98N) 22lbf
- Leeb probe types: D ; DC ; DL ; C ; D+15 ; E ; G.
- Measuring range:
HRC:20~70
HB:90~650
HV:230~940
Tensile strength, MPa: 370~1740
User calibrations for any range (for example: HV100-3000)
- Measuring accuracy:
HRC: 2HRC
HB: 10HB
HV: 15HV
- Standards:
ASTM A1038
ASTM A956
- Indenter:
UCI probe – Diamond indenter
Leeb probe – Hardened ball
- Measuring direction: Any direction 360°
- Data storage: Limited only by the memory card up to 32Gb
- Communication: Upload data to PC and export as a spreadsheet (USB cable and software included)
- Hardness scales :
UCI probe – HRC, HB, HV, MPa
Leeb probe – HRC, HRB, HB, HV, HL, MPa
Additional custom scales for calibration
- Materials:
Ultrasonic (UCI) probe – pre-calibrated for steel
Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
Additional custom materials for calibration
- Data display:
Load applied/contact (UCI)
Angle (Leeb)
Single test result
Max, Min, Average of tests
Number of tests,
Deviation
Var. coeff.
Histogram, Signal and Smart Modes (Filter of incorrect measurements).
- Language:English; German; French; Polish ;Russian .*additional languages available by request
- Indication: Color LCD display (320×240)
- Operating environment:
Temperature:-20°C~40°C
Humidity: 30%~80%R.H.
- Power supply: DC 4,5V (3 pcs batteries AA)
- Instrument dimensions: 160x75x30mm
- Net weight : Approx. 0.3kg (without probe)
- Gross weight (package): 2kg
- Package dimensions, cm: 33*27*10cm
- Battery life: Approx. 10 hours.
- Warranty: 3 (1+2) years
- Package gross weight: 1.8-2kg
