Analog Rockwell Hardness Tester NOVOTEST TS-R
-
465
-
0765 259 545

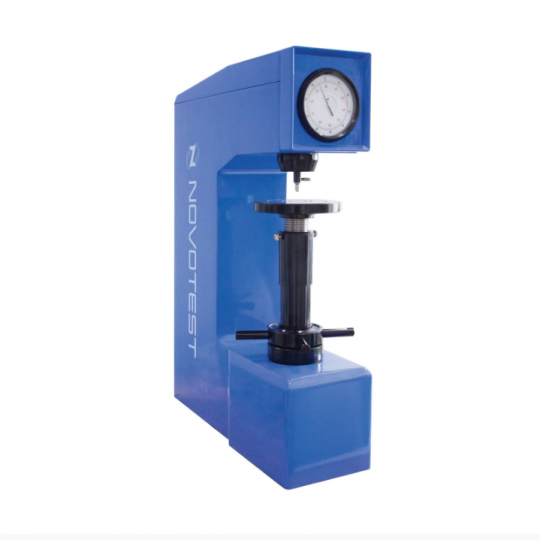

Analog Rockwell Hardness Tester NOVOTEST TS-R
Model: TS-R
Manufacturer: NOVOTEST - Ukraine
Contact for quotation: 0765 259 545
This Rockwell hardness tester utilizes the Rockwell method, measuring metal hardness based on resistance to indentation. Reliable and easy to use, device supports three hardness scales (HRA, HRB, HRC) with loads of 60, 100, and 150 kgf. It features two typу indenters: diamond indenter and hard-alloy ball tips.
Model: TS-R
Manufacturer: NOVOTEST - Ukraine
Contact for quotation: 0765 259 545
This Rockwell hardness tester utilizes the Rockwell method, measuring metal hardness based on resistance to indentation. Reliable and easy to use, device supports three hardness scales (HRA, HRB, HRC) with loads of 60, 100, and 150 kgf. It features two typу indenters: diamond indenter and hard-alloy ball tips.
Analog Rockwell Hardness Tester
Model: TS-R
Manufacturer: NOVOTEST - Ukraine
Contact for quotation: 0765 259 545
Model: TS-R
Manufacturer: NOVOTEST - Ukraine
Contact for quotation: 0765 259 545
Key Features of NOVOTEST TS-R:
Wide coverage of hardness values
The range of Rockwell scales of Analog Rockwell Hardness Tester NOVOTEST TS-R is wide – HRA / HRB / HRC scales cover the Vickers scale in its entirety. The measurement value obtained can be also manually recalculated into Vickers or Brinell scale by the ASTM table of conversion.
Simplicity of use and measurements
The measurement using TS-R is pure simplicity – users set the test force quickly and conveniently by the special knob, and the test force is applied by the weights installed on the rod. The measurement result is displayed on the easy-to-read analog dial. The Rockwell hardness test employed in this model does not provide for the measurement of the imprints, so it is widely used in the hardness testing industry. Also, test objects shall not be perfectly machined for the testing, and this can be winning in comparison with Vickers methods, where measure the dimensions of the print with a microscope and require surface polishing.
A wide variety of test parts
The device can be used to test the hardness of almost any metal. It is mainly suitable for the measurement of the hardness of smaller parts yet the thickness of the test object should be 10 times thicker than the indentation depth. Rockwell testing is applicable to the parts with medium roughness and such metals as steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel and other material.
№1 choice
The simple construction and absence of electronic parts, as well as the simple measurement procedure make Analog Rockwell Hardness Tester NOVOTEST TS-R №1 choice among users. What is more, the device is the most affordable among all the other benchtop hardness testers and it is suitable for most test objects. The operation is simple and fast, and no electronics are involved in the measurement. So the device is fully autonomous and can work even without a power supply. The durable and solid build ensures a long service life and error-free operation.
2 indenters for 2 Rockwell scales
The presence of 2 Rockwell indenters in the delivery set allows using the device for HRA, HRB and HRC scales. The Rockwell indenter with 1/16 inch ball at the tip allows getting readings under HRB hardness scale in the range 20-80 HRB. The major load regarding this hardness scale is 100 kgf. This scale is useful in measurement of the hardness of materials such as copper alloys, soft steels, aluminum and its alloys, and malleable iron. The Rockwell indenter with a diamond cone at the tip is used for higher loads up to 150 kgf. This scale is useful in measuring the hardness of materials such as steel, hard cast iron, pearlitic malleable iron, titanium, deep case-hardened steel, and other hard materials.
Wide coverage of hardness values
The range of Rockwell scales of Analog Rockwell Hardness Tester NOVOTEST TS-R is wide – HRA / HRB / HRC scales cover the Vickers scale in its entirety. The measurement value obtained can be also manually recalculated into Vickers or Brinell scale by the ASTM table of conversion.
Simplicity of use and measurements
The measurement using TS-R is pure simplicity – users set the test force quickly and conveniently by the special knob, and the test force is applied by the weights installed on the rod. The measurement result is displayed on the easy-to-read analog dial. The Rockwell hardness test employed in this model does not provide for the measurement of the imprints, so it is widely used in the hardness testing industry. Also, test objects shall not be perfectly machined for the testing, and this can be winning in comparison with Vickers methods, where measure the dimensions of the print with a microscope and require surface polishing.
A wide variety of test parts
The device can be used to test the hardness of almost any metal. It is mainly suitable for the measurement of the hardness of smaller parts yet the thickness of the test object should be 10 times thicker than the indentation depth. Rockwell testing is applicable to the parts with medium roughness and such metals as steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel and other material.
№1 choice
The simple construction and absence of electronic parts, as well as the simple measurement procedure make Analog Rockwell Hardness Tester NOVOTEST TS-R №1 choice among users. What is more, the device is the most affordable among all the other benchtop hardness testers and it is suitable for most test objects. The operation is simple and fast, and no electronics are involved in the measurement. So the device is fully autonomous and can work even without a power supply. The durable and solid build ensures a long service life and error-free operation.
2 indenters for 2 Rockwell scales
The presence of 2 Rockwell indenters in the delivery set allows using the device for HRA, HRB and HRC scales. The Rockwell indenter with 1/16 inch ball at the tip allows getting readings under HRB hardness scale in the range 20-80 HRB. The major load regarding this hardness scale is 100 kgf. This scale is useful in measurement of the hardness of materials such as copper alloys, soft steels, aluminum and its alloys, and malleable iron. The Rockwell indenter with a diamond cone at the tip is used for higher loads up to 150 kgf. This scale is useful in measuring the hardness of materials such as steel, hard cast iron, pearlitic malleable iron, titanium, deep case-hardened steel, and other hard materials.
Indenters
Rockwell conical diamond indenter with a 120° apex angle
Rockwell hard alloy steel ball indenter (d=1.5875 mm or 1/16 inch)
Test forces
588.4 N (60 kg)
980.7 N (100 kg)
1471 N (150 kg)
Scales and ranges
20-88 HRA
20-100 HRB
20-70 HRC
Conversion to other scales Manual conversion by the conversion tables for Brinell and Vickers scales
Measurement accuracy
20-75 HRA: ±2 HRA
75-88 HRA: ±1.5 HRA
20-45 HRB: ±4 HRB
45-80 HRB: ±3 HRB
80-100 HRB: ±2 HRB
20-70 HRC: ±1.5 HRC
Resolution 0.1
Dwell time 5~60 sec
Testing materials
Cemented carbides, thin steel, shallow case-hardened steel
Copper alloys, soft steels, aluminum alloys, malleable iron
Steel, hard cast irons, titanium, deep case-hardened steel
Maximum height of the test object 200 mm (optionally up to 400 mm)
Maximum depth of the test object 165 mm
Data output Dial indicator
Type Mechanical, analog
Power supply Not required
Recommended operating conditions
Air temperature: 0…+40 °С
Air pressure: 94 – 106.7 kPa
Humidity: up to 65%
Net weight ~ 55 kg
Gross weight ~ 65 kg
Package dimensions 630 x 500 x 860 mm
Color Blue
Rockwell conical diamond indenter with a 120° apex angle
Rockwell hard alloy steel ball indenter (d=1.5875 mm or 1/16 inch)
Test forces
588.4 N (60 kg)
980.7 N (100 kg)
1471 N (150 kg)
Scales and ranges
20-88 HRA
20-100 HRB
20-70 HRC
Conversion to other scales Manual conversion by the conversion tables for Brinell and Vickers scales
Measurement accuracy
20-75 HRA: ±2 HRA
75-88 HRA: ±1.5 HRA
20-45 HRB: ±4 HRB
45-80 HRB: ±3 HRB
80-100 HRB: ±2 HRB
20-70 HRC: ±1.5 HRC
Resolution 0.1
Dwell time 5~60 sec
Testing materials
Cemented carbides, thin steel, shallow case-hardened steel
Copper alloys, soft steels, aluminum alloys, malleable iron
Steel, hard cast irons, titanium, deep case-hardened steel
Maximum height of the test object 200 mm (optionally up to 400 mm)
Maximum depth of the test object 165 mm
Data output Dial indicator
Type Mechanical, analog
Power supply Not required
Recommended operating conditions
Air temperature: 0…+40 °С
Air pressure: 94 – 106.7 kPa
Humidity: up to 65%
Net weight ~ 55 kg
Gross weight ~ 65 kg
Package dimensions 630 x 500 x 860 mm
Color Blue
