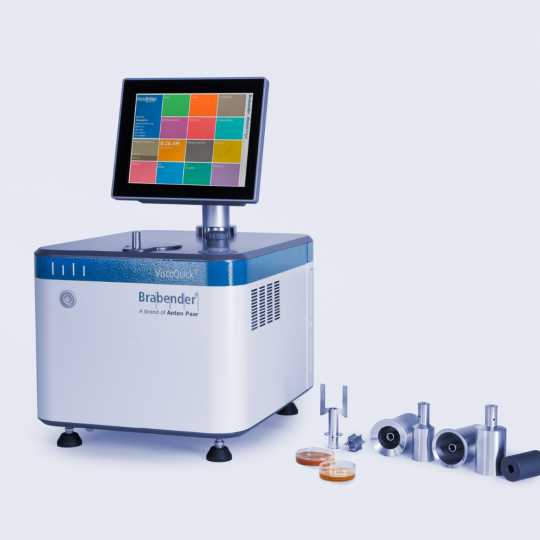

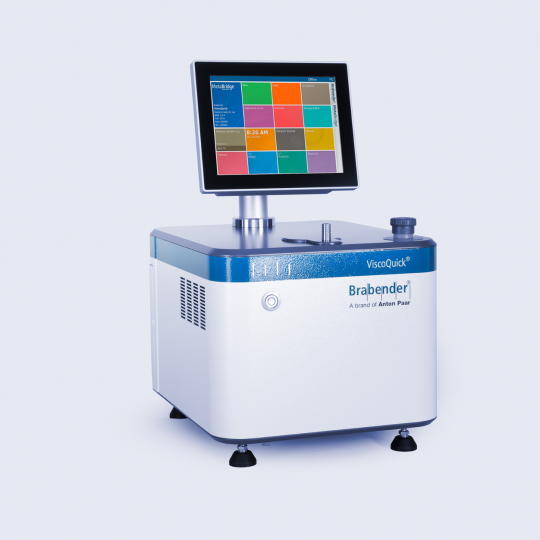

Brabender ViscoQuick Universal Torque Viscometer
Universal Torque Viscometer:
Brabender ViscoQuick
- ViscoQuick: 25 % faster than other starch gelatinizing solutions
- Rapid heating and cooling rates (-15 °C/min | + 20 °C/min)
- Intuitive MetaBridge software for operator convenience
- Dose additives during the measurement for real-time insights
- Compact: integrated temperature control, PC, and touchscreen
Viscosity range | 30 cP/mPas to 50,0000 cP/mPas |
Speed | 0 min-1 to 500 min-1 |
Temperature range | 10 °C to 110 °C |
Heating rate | Up to 20.0 °C / min |
Cooling rate | Up to 15.0 °C / min |
Sample volume | 5 g to 15 g |
Distilled water | 100 mL to 115 mL |
Touch screen | 10.4" (1024 × 768 px), fixed |
Dimensions | 430 mm x 640 mm x 350 mm (W x H x D) |
Weight | Approx. 36 kg |
The Amylograph-E assesses starch properties and enzyme activity in flours according to ICC, ISO, and AACCI standards. Its gradual heating replicates baking conditions and captures the entire enzyme spectrum without starch damage. High-precision measurements are visually displayed in a diagram with multiple evaluation points. Real-time temperature measurements are devoid of fluctuations and guarantee precision throughout the process. Paired with MetaBridge software, it ensures standard conformity, allowing real-time flour quality monitoring and streamlined workflows. Accessible from any device, it simplifies instrument connectivity and enables effortless data sharing, saving valuable analysis time.
RheolabQC is a rotational rheometer based on state-of-the-art technologies also used in R&D rheometers. It combines unrivaled performance with easy operation and robust design. From quick single-point checks over flow curve and yield point determinations to complex rheological investigations: RheolabQC sets new standards for carrying out routine rheological tests. This powerful rheometer is an excellent example of a modern measuring instrument utilizing all available technical possibilities to ensure flexible, reliable and simple operation.
Our affordable digital petroleum testing equipment, consisting of a viscometer and density meters, complies with internationally acknowledged standards like ASTM and ISO and minimizes potential human error in your processes, giving you the confidence and peace of mind that your measurements are always accurate.
Rheometer Software: RheoCompass
Rheometers from Anton Paar open up a constantly growing number of measurement opportunities. This calls for a navigation tool that provides the complete overview as well as the exact insights they require: Anton Paar’s RheoCompass software, the most innovative state-of-the-art rheometer software on the market. Designed for intuitive use, RheoCompass enables application-oriented template filtering, customized test definitions, simplified data retrieval, data analysis, and much more.
Model: ViscoQC 100 L ; 100R ; 100H ; 300L ; 300R ; 300H
