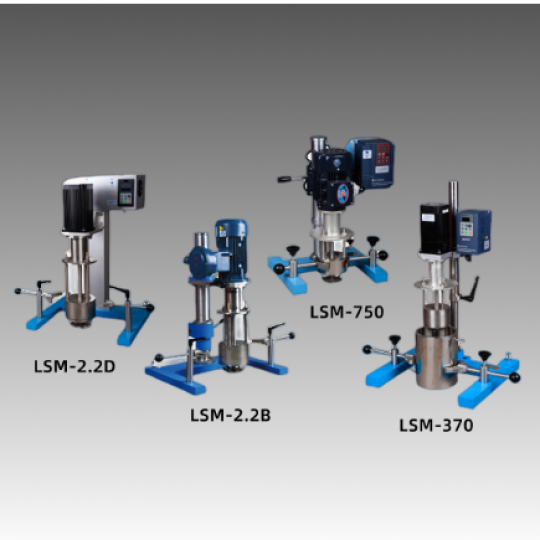

Lab Basket Mill LSM-370​​​​​​​

Lab Basket Mill LSM-370​​​​​​​

Lab Basket Mill
Product Number: LSM-370​​​​​​​
Brand Name: MODERNER
Introduction:
Electric Lift Basket Mill is mainly used for various liquid paste materials such as paint, printing ink, pigment, etc.(not suitable for materials with acid-base ingredients or paint which would lead to machine corrosion) in preliminary experiment. The machine consists of brushless dc motor, adopts frequency control, digital display. Basket and barrel have interlining for cooling. This design is better for reducing grinding temperature, avoid overheating. Lift way is Electric Lifting, you can press “UP” or “DOWN” button to control, simple structure, small volume

Ứng dụng:

Lab Basket Mill
Product Number:
LSM-370
Brand Name: MODERNER
Introduction:
Electric Lift Basket Mill is mainly used for various liquid paste materials such as paint, printing ink, pigment, etc.(not suitable for materials with acid-base ingredients or paint which would lead to machine corrosion) in preliminary experiment. The machine consists of brushless dc motor, adopts frequency control, digital display. Basket and barrel have interlining for cooling. This design is better for reducing grinding temperature, avoid overheating. Lift way is Electric Lifting, you can press “UP” or “DOWN” button to control, simple structure, small volume
Motor Type: Brushless DC
Power: 550W
Speed Range: 50~4000rpm
Lifting Distance: 240mm
Zirconia Bead:Φ1.4~Φ1.6mm
Milling Impellers: Φ44mm
Dispersion Impellers: Φ60mm
Container:1.25L
Overall Size: 450×420×550mm
Packing size: 580×540×610mm
Electrical Source: 220V 50/60Hz
Weight: 22kg
Gross weight: 28.9+4.1
(charging barre
l)
