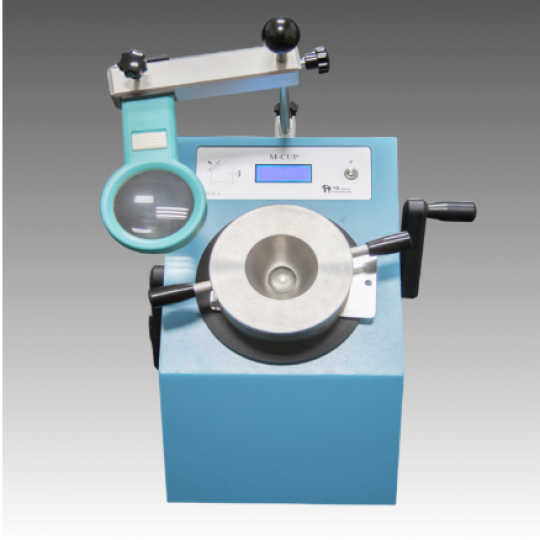

TCB-II Cupping Tester

TCB-II Cupping Tester

Cupping Tester
Model: TCB-II
Manufacturer: MODERNER - China
Contact for quotation: 0765 259 545
Introduction:
The NEW Modern Instruments TCBII Cupping Tester, designed with a new highly functional geared design for linear force transmission it is designed to aid user friendly testing and a magnifier to provides easy visual inspection.
A sample panel with a minimum coating thickness 0.3 mm, is clamped by an upper wheel and manually cupped by a 20 mm circumference hemispherical indenter onto to a die by a drive wheel.
The depth to cause failure is indicated on the digital display, from 0 - 10 mm, in increments of 0.01 mm.

Ứng dụng:

Cupping Tester
Model: TCB-II
Manufacturer: MODERNER - China
Standard: ISO 1520,BS 3900,DIN 53166,DIN 53233
TCB Cupping Tester is in accordance with the specification in ISO 1520《Paints and Varnishes—Cupping Test》and the design and manufacture in National Standard GB/T 9753.
Ⅰ. Introduction:
The NEW Modern Instruments TCBII Cupping Tester, designed with a new highly functional geared design for linear force transmission it is designed to aid user friendly testing and a magnifier to provides easy visual inspection.
A sample panel with a minimum coating thickness 0.3 mm, is clamped by an upper wheel and manually cupped by a 20 mm circumference hemispherical indenter onto to a die by a drive wheel.
The depth to cause failure is indicated on the digital display, from 0 - 10 mm, in increments of 0.01 mm.
Diameter of top steel ball: 20mm
Maximum jacking height: 10mm
Height display accuracy: 0.05mm
Jack-up speed by shaking hands: 0.20mm/r
Recommended test plate size: 70×70×0.30~1.25mm
Packing size: 440×390×500mm
Weight: 24KG
Gross weight: 26.5KG
