1200°C Muffle Furnace for 3D Printing M1200-15

1200°C Muffle Furnace for 3D Printing M1200-15

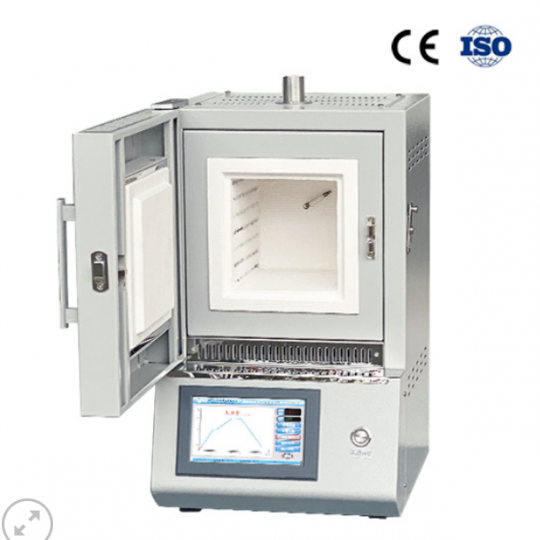

1200°C Muffle Furnace for 3D Printing
Model: M1200-15
ZYLAB 1200°C Muffle Furnace for 3D Printing is a high-performance, cost-effective sintering solution designed for ceramic additive manufacturing. With precise temperature control and uniform heating, this mid-temperature furnace is ideal for sintering 3D printed ceramic components in research labs, universities, and industrial environments.

Ứng dụng:

1200°C Muffle Furnace for 3D Printing
Model: M1200-15
Key Features
Max Temperature 1200°C: Working range: RT to 1100°C—suitable for mid-temperature sintering of 3D printed ceramics.
7-Inch Smart Touchscreen Controller: Intuitive UI, real-time temperature tracking, and programmable temperature curves to eliminate redundant manual settings.
30-Segment Programmable Control: Fully automatic, customizable heating profiles for precise thermal treatment.
High-Efficiency Ceramic Fiber Chamber: Constructed with multilayer alumina insulation for rapid heating and energy savings.
Premium Heating Components: Equipped with corrosion-resistant alloy heating wires to minimize contamination and extend service life.
Top Exhaust Chimney: Efficiently removes fumes and volatiles—ideal for wax burnout, ashing, and other lab applications.
Dual-Layer Steel Housing with Cooling Fan: Keeps exterior temperature below 50°C, ensuring operator safety and extended equipment lifespan.
Compact, Lightweight & Energy Efficient: Designed for lab benches or small-scale production use; a practical tool for R&D or ceramic sintering in industrial settings.
Customizable Chamber Sizes (Optional): Available in multiple volumes to suit different workflows and material requirements.
Applications of Muffle Furnace for 3D Printing
Sintering of 3D printed ceramic parts
Debinding of ceramic green bodies
Wax burnout and ashing processes
High-temperature material testing
General heat treatment in research and small-scale production
Model
M1200-15
M1200-20
M1200-30
M1200-40
Working voltage
AC 208 – 240V, 50/60 Hz (according to requirement)
Max. Power
3KW
4KW
9KW
15KW
Maximum Temperature
1200°C (for ≤1 hour)
Continuous Working Temp
1100°C (continuous)
Max Heating Rate
≤20°C/min
Chamber Size
150 × 150 × 200 mm
200*200*300mm
300*300*400mm
400*400*500mm
Overall Dimensions
390 (W) × 600 (H) × 430 (D) mm
650(W)*520(H)*600(D)mm
950(W)*1400(H)*870(D)mm
1100(W)*1650(H)*1050(D)mm
Temperature Controller
Intelligent Touch Screen Control System
  • Color touchscreen with intuitive GUI (English/Chinese switchable).
  • Embedded OS with smart HMI.
  • Non-linear temperature calibration.
  • Stores up to 15 programs, 30 segments per program.
  • Safety features: over-temp alarm, thermocouple break alert, leakage protection.
Temperature Accuracy
±1°C
Heating Element
Heating Chamber of Small Muffle Furnace
Mo-doped Fe-Cr-Al alloy heating wire
Atmosphere Protection Box(Optional)
Atmosphere protection box in furnace
Designed to create a controlled atmosphere inside the chamber. Prevents oxidation, contamination, and undesired reactions during heating. Customizable sizes available.
Net Weight
40 kg
60 kg
160 kg
260 kg
Safety Notice
  • Do not open the chamber if internal temp ≥300°C to avoid injury.
  • Small cracks in chamber due to use are normal and do not affect performance.
Warranty & Support
18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.
