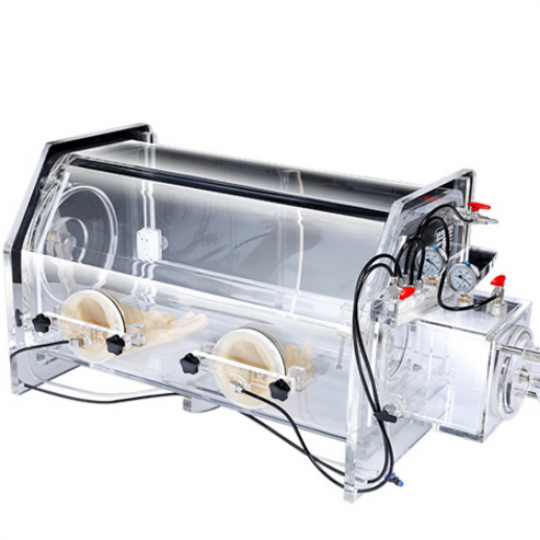

Type C Laboratory Acrylic Vacuum Glove Box

Type C Laboratory Acrylic Vacuum Glove Box

Type C Laboratory Acrylic Vacuum Glove Box
Model: MT001-C
Building on the features of Type A and Type B glove boxes, the Type C glove box requires control of water and oxygen levels during experiments. This is achieved by using a vacuum pump to extract air from the box and then introducing high-purity, dry inert gas to achieve a low water and oxygen environment inside the box. This model uses acrylic panels with a thickness of 20mm to 30mm and includes a transfer transition chamber.

Ứng dụng:

Type C Laboratory Acrylic Vacuum Glove Box
Model: MT001-C
Optional:
Can choose vacuum pump, and also can be customized according to demand.
Type A: This glove box is specifically for protection against radiation, isolation operation or dust-proof operation, and no transition box.
Type B: As an anaerobic glove box, the transition room can be vacuumed but not vacuum in the main box, and the glove box could be replaced by inert gas.
Type C: The main box and transition box can be vacuumed and replaced by inert gas, max vacuum level can reach -0.1mpa.
Technical Parameters of Vacuum Glove Box:

Model
Operation Box Dimension(mm)

Material
Material Thickness(mm)
Transition Chamber
Vacuum is pumped
Left Round Door
Gloves
Transition Box Dimension(mm)
Operation
Box
Transition Box
MT012-C
700*450*500
PMMA
10mm
 Have
Yes
Yes
300mm
2
240×240×240
MT011-C
800*550*600
PMMA
10mm
Have
Yes
Yes
350mm
2
240×240×240
MT010-C
1000*500*500
PMMA
10mm
Have
Yes
Yes
300mm
2
240×240×240
MT009-C
1000*700*500
PMMA
10mm
Have
Yes
Yes
300mm
2
240×240×240
MT008-C
900*600*700
PMMA
10mm
Have
Yes
Yes
350mm
2
240×240×240
MT007-C
1000*600*700
PMMA
10mm
Have
Yes
Yes
350mm
2
240×240×240
MT006-C
1000*750*700
PMMA
10mm
Have
Yes
Yes
350mm
2
240×240×240
MT005-C
1200*600*600
PMMA
10mm
Have
Yes
Yes
350mm
3
240×240×240
MT004-C
1200*600*700
PMMA
10mm
Have
Yes
Yes
350mm
3
240×240×240
MT003-C
1200*800*600
PMMA
10mm
Have
Yes
Yes
350mm
3
240×240×240
MT002-C
1200*800*700
PMMA
10mm
Have
Yes
Yes
350mm
3
240×240×240
MT001-C
1094*640*645
PMMA
10mm
Have
Yes
Yes
400mm
4
240×240×240
