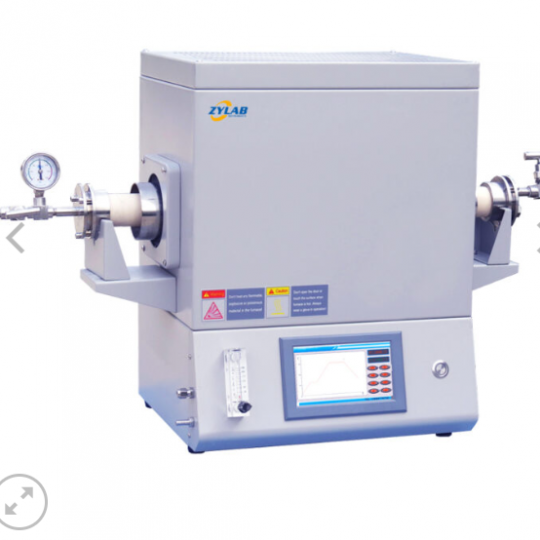

1500.C Small Tube Furnace for Lab Research
Model
|
T1500-IT
|
Product name
|
1500.C Intelligent single-temperature zone tube furnace
|
Display mode
|
7 inch color touch screen,smart fuzzy PID control
|
Chamber material
|
Imported high quality
alumina fiber refraction insulation |
Heating element
|
High quality SiC rod
|
Max. temperature
|
1500.C (< 1hour)
|
Working temperature
|
≤1450.C(continue)
|
Heating rate
|
0-20.C/min (advice:10.C/min)
|
Length of heating zone
|
180mm(optional: 310mm or 480mm)
|
Heating zone quantity
|
One (optional: two)
|
Tube size(mm)
|
Φ50*700 (inner diameterΦ42)
Other optional size:
Φ50*1000,Φ60*1000,Φ80*1000
Φ50*1200,Φ60*1200,Φ80*1200
|
Temperature control
|
30 segments programmable and PID auto control
|
Accuracy
|
±1℃
|
Operating Interface
|
English Graphical Interface
|
Sealing Mode
|
Vacuum Flange
|
Vacuum
|
≤10pa
|
Flow control
|
0 – 60ml/min
|
Presetting curve
|
15pcs sintering curve
|
Protection setting
|
Over temperature alarm, Over-current protection, broken
thermocouple prompt
|
Thermocouple
|
S type
|
Certification
|
CE,ISO
|
Power
|
220V 50/60Hz, 1.5KW
|
Dimensions
|
850×420×680(mm)
|
Net weight
|
30kgs
|
Standard Accessories
|
Alumina Tube, Vacuum Flange,Vacuum Gauge,
Gas Flow Meter,Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
Warranty
|
18 months(not including consumable parts, such as alumina tube, heating elements, thermocouple, etc), lifetime support.
|
