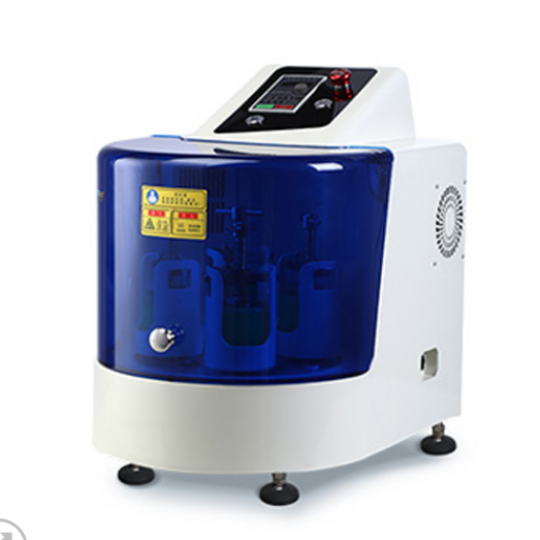

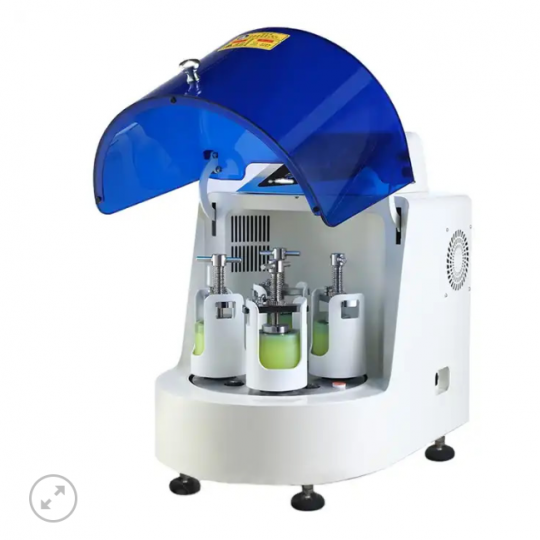

0.1um Lab Benchtop 1L Planetary Ball Mill with Smart Panel BM-1L(Oil seal mute)
0.1um Lab Benchtop 1L Planetary Ball Mill with Smart Panel
Model: BM-1L(Oil seal mute)
ZYLAB - CHINA
Product Name | Lab Desktop 1L Planetary Ball Mill with Smart Panel |
Model | BM-1L(Oil seal mute) |
Field of Application | Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on. |
Feed Material | Medium or low hardness, hard, brittle, fibrous, viscous. |
Size Reduction Principle | Crushing, grinding, mixing, homogenization, alloying |
Main Disk Structure | Planetary main disk gear invades and reinforces in lubricating oil, noise isolation treatment |
Standard | CE |
Electrical Description | 100-120V/200-240V AC ,50-60Hz, (0.55KW) |
Material Feed Size | < 5 mm soil<10 mm |
Final Fineness | < 100 nm |
Batch Size / Feed Quantity | 4 x 250ml |
Grinding Jar Sizes | 50 ml /100 ml/ 250ml |
Vacuum Jar Size | 100ml( Stainless steel) |
Feed Material Capacity | 83ml*4 |
Feed balls Capacity | 83ml*4 |
Sun Wheel Speed | 10 – 450 r/min |
Ball Mill Jar Speed | 20 – 900 r/min |
Total Grinding Speed | 1350 /min |
Speed Ratio | 1:2 |
Material of Grinding Tools | Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc. |
Grinding Ball | Ball Size: 1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm
Grinding Ball Selection: |
No. of Grinding Stations | 2 or 4 |
Mode | Vertical planetary |
Grinding Mode | Dry/wet |
Low Temperature Cooling Treatment | Yes (air cooler added) |
Oil Seal Position | The bottom of planetary main disk |
Disk Dimensions | 265mm |
Oil Seal Capacity | 800ml(fill in before using the planetary ball mill) |
Noise | < 60dB(Within 3 metre) |
Protection Code | IP60 |
CN Patent | Safety protection (No.ZL 2015 2 0836150.6) |
CN Patent | Oil seal silent (Patent No.ZL 2014 2 0375569.1) |
CN Patent | Frequency control(patent No.ZL 2016 2 0836150.6) |
W x H x D Closed | 550*370*560mm |
Net Weight | 80kg |
