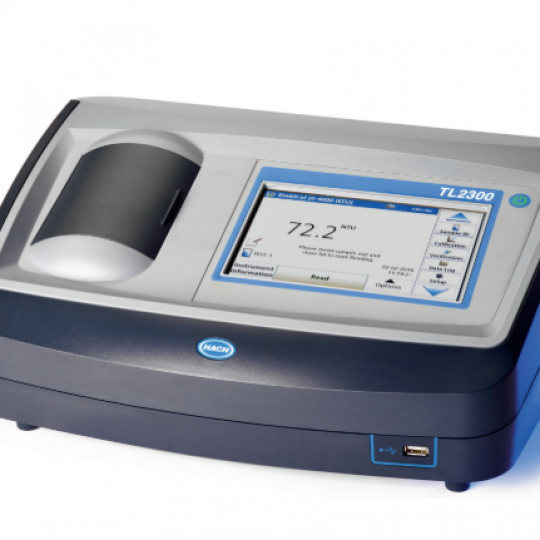

HACH TL2300 Benchtop Turbidity Meter (LPV444.32.00210)
HACH TL2300 Benchtop Turbidity Meter
Model: TL2300 (EPA)
Manufacturer: Hach - USA
Technical specifications:
Measuring range:
NTU (Ratio on): 0 - 4000
NTU (Ratio off): 0 - 40
EBC (Ratio on): 0 - 980
EBC (Ratio off): 0 - 9.8
Accuracy:
± 2% of reading plus 0.01 NTU from 0 - 1000 NTU, ± 5% of reading from 1000 - 4000 NTU based on formazin primary standard
± 2% of reading plus 0.01 NTU from 0 - 40 NTU
Air purging:
Dry nitrogen or instrument air (ANSI MC 11.1, 1975)
0.1 scfm at 69 kPa (10 psig); Welding Hose Connections up to 138 kPa (20 psig) for 1/8-inch Hose
17.8 mm (7 in.) Color Touchscreen
Interfaces: 2 USB-A Ports for USB Flash Drive, External Thermal Printer, Keyboard, and Barcode Scanner
Light Source: Tungsten Filament Lamp
Operating Temperature: 0-40 °C
Power Requirement (Amps):3.4 A
Power Requirement (Hz):50/60 Hz
Power Requirement (Voltage): 100 – 240 VAC
Response Time:Average Signal Off: 6.8 sec / Average Signal In: 14 sec (when 10 measurements are used to calculate the average)
Sample Cell Compatibility:95 x 25 mm (3.74 x 1 in.) Borosilicate Glass Round Cells with Rubber-Lined Screw Caps
Ratio off: 60 minutes after start-up
Storage conditions:-20 to 60°C
Units:NTU and EBC
