IG-340 Portable gloss meter
-
22
-
0765 259 545

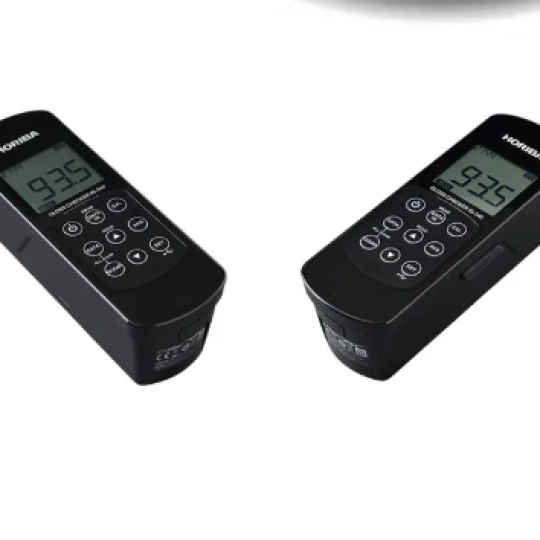

Portable gloss meter
Model: IG-340
Horiba
Gloss is an important visual characteristic of an object's surface. The degree of light reflected from an object's surface is called gloss. However, the perception of gloss is subjective and depends on weather conditions, the viewer's physical ability, etc. The IG-340 gloss meter helps quantify gloss measurement and perform objective numerical gloss values.
The IG-340 gloss meter's user-friendly interface allows for intuitive operations for on-site gloss measurement. Thanks to its ergonomic design and light weight, the IG-340 can be held and operated with one hand. Its high accuracy, repeatability and precision, proven through over 50,000 products sold worldwide, make it indispensable for visual inspection and quality control of objects.
The IG-340 uses a popular 60° measuring angle, allowing accurate measurements from low gloss surfaces to high gloss textures.
Model: IG-340
Horiba
Gloss is an important visual characteristic of an object's surface. The degree of light reflected from an object's surface is called gloss. However, the perception of gloss is subjective and depends on weather conditions, the viewer's physical ability, etc. The IG-340 gloss meter helps quantify gloss measurement and perform objective numerical gloss values.
The IG-340 gloss meter's user-friendly interface allows for intuitive operations for on-site gloss measurement. Thanks to its ergonomic design and light weight, the IG-340 can be held and operated with one hand. Its high accuracy, repeatability and precision, proven through over 50,000 products sold worldwide, make it indispensable for visual inspection and quality control of objects.
The IG-340 uses a popular 60° measuring angle, allowing accurate measurements from low gloss surfaces to high gloss textures.
Portable gloss meter
Model: IG-340
Horiba
Compact, lightweight and easy to operate
30% smaller than previous model IG-320
Easy to hold and carry with one hand
Gloss values can be easily managed on-site with just one button and one function.
Environmental Assessment
IP (Ingress Protection) rating of IP42*
Can be used to measure gloss outdoors such as construction sites, solar panels, boats, trains and buses
Can also be used for polishing stones and other applications where water droplets are present.
Large display
The indicated values can be easily confirmed when the IG-340 is placed on the floor during floor cleaning and maintenance.
Internal memory for measured values and average values
Measured values can be saved with just one touch
Can be easily operated with one hand using the side button
The average value can also be calculated and saved.
Specifications;
Measuring range 0.0 to 100.0
Display range 0.0 to 199.9 [OVER] is displayed for values greater than 100.0
Repeatability * 1 ±0.6 (±0.5% of full scale ±1 digit)* 2
Measured area : Ellipse 6 × 12 mm
Measurement shape 60°
Light source: LED light (880 nm)
Operating temperature: 0 to 40℃
Relative humidity: 35 to 85%RH (non-condensing)
Environmental: Assessment IP42
Power supply AA batteries × 2
Size 61 (W) × 62 (D) × 176 (H) mm
Weight: 320g or less (including battery and protective case)
Functions
Auto auto power off (10 min)
Memory: 100 readings and 200 average data with date and time
Export data to computer via USB cable
(Batch export of memory data, OS: Windows ® 10)* 3
Display range 0.0 to 199.9 [OVER] is displayed for values greater than 100.0
Repeatability * 1 ±0.6 (±0.5% of full scale ±1 digit)* 2
Measured area : Ellipse 6 × 12 mm
Measurement shape 60°
Light source: LED light (880 nm)
Operating temperature: 0 to 40℃
Relative humidity: 35 to 85%RH (non-condensing)
Environmental: Assessment IP42
Power supply AA batteries × 2
Size 61 (W) × 62 (D) × 176 (H) mm
Weight: 320g or less (including battery and protective case)
Functions
Auto auto power off (10 min)
Memory: 100 readings and 200 average data with date and time
Export data to computer via USB cable
(Batch export of memory data, OS: Windows ® 10)* 3
Accessories* 4
Protective case with integrated calibration cell (3200840869)
Soft Case (3200829076)
Lens cleaning cloth (3200829127)
Protective case with integrated calibration cell (3200840869)
Soft Case (3200829076)
Lens cleaning cloth (3200829127)
