Portable NIR analyzer
Model: Visum Palm

Ứng dụng:

Products Information
Comment

Portable NIR analyzer

Model: Visum Palm

Visum Palm™ Specifications

SENSOR : Linear array of InGaAs photodetectors

SPECTRAL RANGE: 900 – 1700 nm

MEASUREMENT AREA : 10 mm

LIGHTING AREA OF THE SAMPLE: 50 mm

LAMP: Halogen, includes coupling system

TIME OF ONE MEASUREMENT : 3 seconds

TYPICAL ACQUISITION TIME FOR A SINGLE SPECTRUM: 5 ms

SPECTRAL RESOLUTION (↓ nm = ↑ spectral resolution): 5 nm (256 px)

SIGNAL-TO-NOISE RATIO (SNR): 4500:1

WAVELENGTH PRECISION : < 1 nm

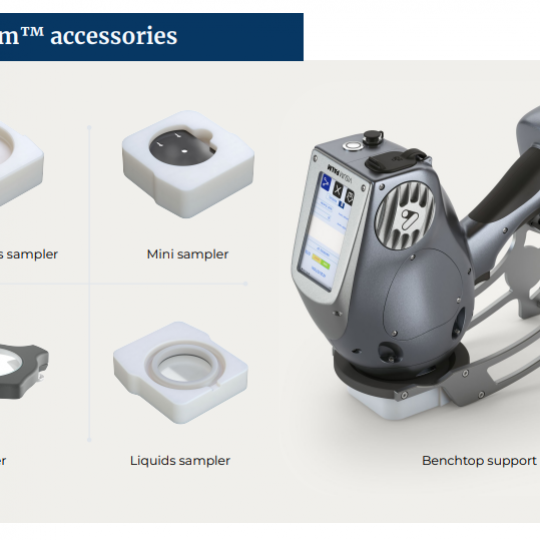

ACQUISITION GEOMETRY: Diffuse reflectance. Transflectance and transmittance with optional accessory on request

WEIGHT: 1,9 kg

IP PROTECTION: IP54 - IP66 (optical aperture)

POWER SUPPLY: Rechargeable and replaceable battery. Charger (220 VAC) integrated into the device

LIFETIME OF THE LIGHT SOURCE: 2 years (standard use)

BATTERY LIFE: Up to 4 hours. A spare battery with external charger can be supplied on request

LIGHT SOURCE LIFETIME: Up to 2 years standard use or 4000 h

INTEGRATED COMPUTER : A7 Dual-Core ARM®

BASIC CONNECTIVITY: Ethernet (TCP/IP) / Wi-Fi

USER INTERFACE : Integrated 5.3" resistive touch screen and manual trigger for spectrum acquisition

EMBEDDED SOFTWARE: Visum®

SOFTWARE AND AUTOMATED MODEL BUILDER FOR PC: Visum Master™ - Windows 10 or higher operating system. Recommended requirements: Intel i5, 16 GB RAM, 120 GB storage, 1366x768 resolution.

BARCODE SCANNER: Yes. Scanner supplied separately
