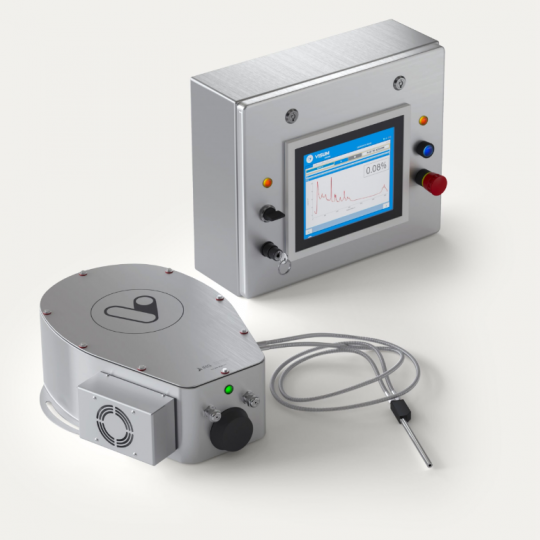

Visum Raman In-Line™ - Raman analyzer

TURNKEY SOLUTIONS

The Visum Raman In-Line™ is a cutting-edge Raman analyzer from IRIS Technology Solutions, renowned as an advanced and precise analytical tool for real-time process monitoring across various industries, including pharmaceuticals, petrochemicals, food, and biotechnology. This device enables continuous control of critical process parameters, optimising production efficiency and quality through high-resolution, non-destructive measurements. Notably, it complies with CFR 21 Part 11 regulations for use in GMP environment. IRIS Technology Solutions, with its focus on turnkey solutions, integrates the Visum Raman In-Line™ into bespoke systems tailored to meet specific regulatory and operational requirements, providing full support from design to final implementation.

• Raman analyzer engineered for industrial processes and environments: Designed to meet the demands of continuous, in-line industrial monitoring.
• Fully integrated Raman analyzer: Self-contained system with no need for an external computer, streamlining deployment and operation.
• Raman shift range: 150 to 3000 cm⁻¹ (794 nm to 1027 nm) for broad spectral analysis.
• High spectral resolution: 11 cm⁻¹ (0.7 nm) precision, ensuring detailed and accurate measurements.
• 785 nm laser excitation: Optimised wavelength to minimise fluorescence interference, enhancing data quality.
• High-power class 4 laser (500 mW): Maximises Raman signal strength for precise analysis, with built-in safety measures.
• Minimal warm-up time: Ready within 5 minutes, significantly faster than comparable devices.
• Extended laser lifetime: 28,000 hours MTTF, ensuring reliable 24/7 operation for over 3 years.
• Advanced sensor cooling: Maintains -40°C at 25°C ambient for stability in demanding conditions.
• Versatile connectivity: Supports Ethernet, OPC, Modbus, Profinet, and more for seamless integration.
• Rugged IP65-68 Protection: The Raman analyzer is fully protected against dust and water for dependable use in harsh environments.
• Portable at-line version available: The Raman analyzer can be mounted on a mobile rack for flexibility across multiple processes or laboratory settings. Includes configurable and secure sample-holder module for Falcon vials.
