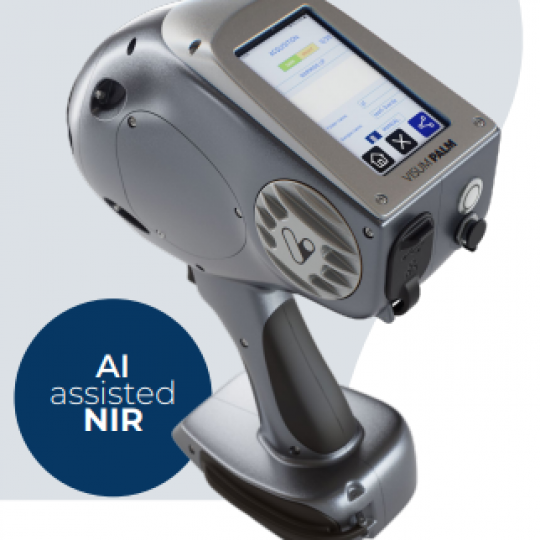

Portable NIR analyzer
Model: Visum PALM GxP™
Portable NIR analyzer for GxP environments, suitable for use in warehouses, production processes, or laboratories. Comprehensive, efficient, and intelligent. Designed to meet the highest market standards
Model: Visum PALM GxP™
Portable NIR analyzer for GxP environments, suitable for use in warehouses, production processes, or laboratories. Comprehensive, efficient, and intelligent. Designed to meet the highest market standards
Portable NIR analyzer
Model: Visum PALM GxP™
Model: Visum PALM GxP™
SENSOR: Linear array of InGaAs photodetectors
SPECTRAL RANGE: 900 – 1700 nm
MEASUREMENT AREA :10 mm
LIGHTING AREA OF THE SAMPLE: 50 mm
LAMP: Halogen, includes coupling system
TIME OF ONE MEASUREMENT: 3 seconds
TYPICAL ACQUISITION TIME FOR A SINGLE SPECTRUM: 5 ms
SPECTRAL RESOLUTION (↓ nm = ↑ spectral resolution): 5 nm (256 px)
SIGNAL-TO-NOISE RATIO (SNR): 4500:1
WAVELENGTH PRECISION: < 1 nm
ACQUISITION GEOMETRY: Diffuse reflectance. Transflectance and transmittance with optional accessory on request
WEIGHT: 1,9 kg
IP PROTECTION: IP54 - IP66 (optical aperture)
POWER SUPPLY: Rechargeable and replaceable battery. Charger (220 VAC) integrated into the device LIFETIME OF THE LIGHT SOURCE: 2 years (standard use)
BATTERY LIFE: Up to 4 hours. A spare battery with external charger can be supplied on request
LIGHT SOURCE LIFETIME: Up to 2 years standard use or 4000 h
INTEGRATED COMPUTER: A7 Dual-Core ARM®
BASIC CONNECTIVITY: Ethernet (TCP/IP) / Wi-Fi
USER INTERFACE: Integrated 5.3" resistive touch screen and manual trigger for spectrum acquisition EMBEDDED SOFTWARE: Visum®
SOFTWARE AND AUTOMATED MODEL BUILDER FOR PC: Visum Master™ - Windows 10 or higher operating system. Recommended requirements: Intel i5, 16 GB RAM, 120 GB storage, 1366x768 resolution.
BARCODE SCANNER: Yes. Scanner supplied separately
