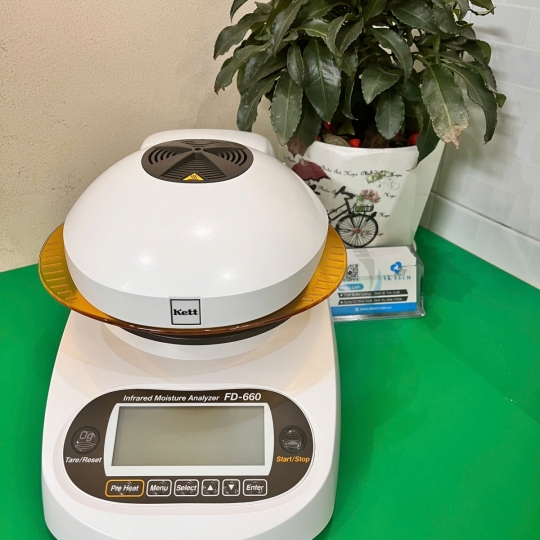

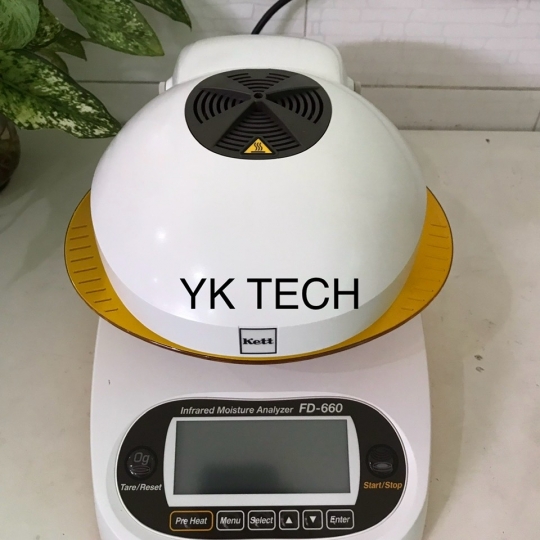

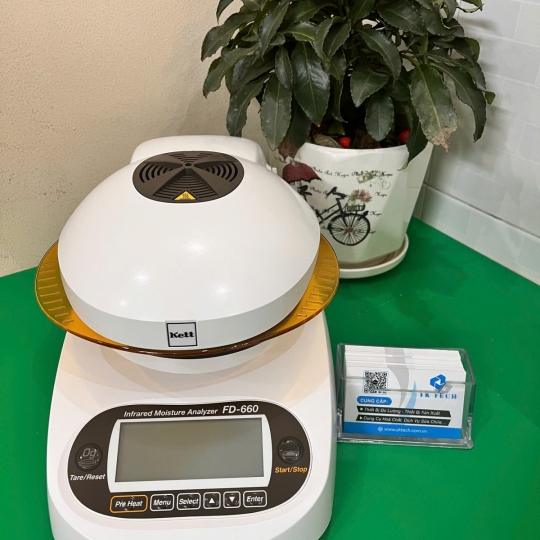

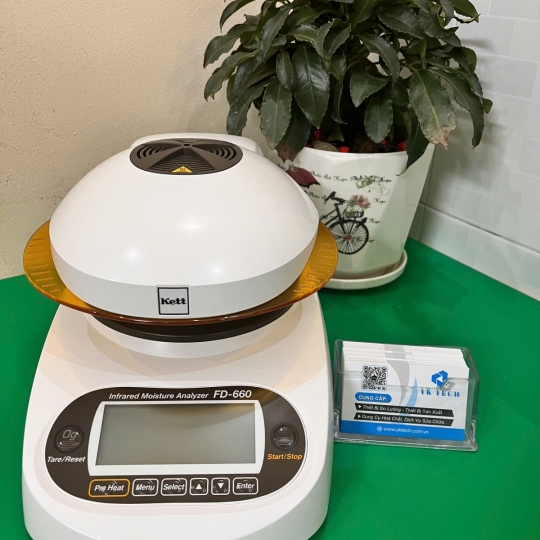

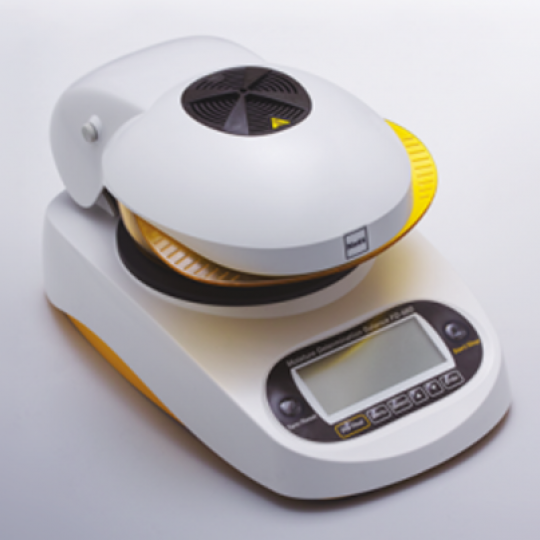

Infrared Moisture Analyzer FD-660
Kett FD-660 infrared moisture meter measures moisture by detecting loss of balance by heating & drying. Kett FD-660 infrared moisture meter is quite similar to “the Loss on Drying Test” one of the official standard measurement methods, forming the basis of moisture measurement. Moisture readings of almost all samples, regardless of type and shape, can be measured.
FD-660 Moisture Meter
Model: FD-660
Manufacturer: Kett
Origin: Japan
Measurement method | Detection of weight loss by heating & drying |
---|---|
Sample mass | 1 - 80 g (optional weight sampling format) |
Resolution | Moisture content/Solid content: 0.1 % or 0.01% (selectable)The indication of 0.01 % is not guaranteed foraccuracy.Weight: 0.005 g |
Measurement range | 0 - 100 % (wet basis, solid content)0 - 500 % (dry basis) |
Repeatability (Standard deviation) | Samples with a weight of 5 g or more, 0.1 %(When using standard samples and measuringconditions as determined by Kett ElectricLaboratory) |
Display format | LCD display (96 x 40 mm) |
Measurement mode | Automatic halting modeTimed halting mode (1 to 120 min.) |
External I/O | RS-232C interface |
Heat source | Organic carbon heater (280 W x 2) |
Power source | 100-120V AC / 220-240V AC (50/60 Hz) |
Power consumption | Max. 900 W |
Dimensions & weight | 222 (W) x 360 (D) x 196 (H) mm, 3.2 kg |
Sample dish | Stainless steel (110 mm in diameter, 11 mm in depth) |
