Vacuum Drying Oven SH-VDO-30NG

Vacuum Drying Oven SH-VDO-30NG

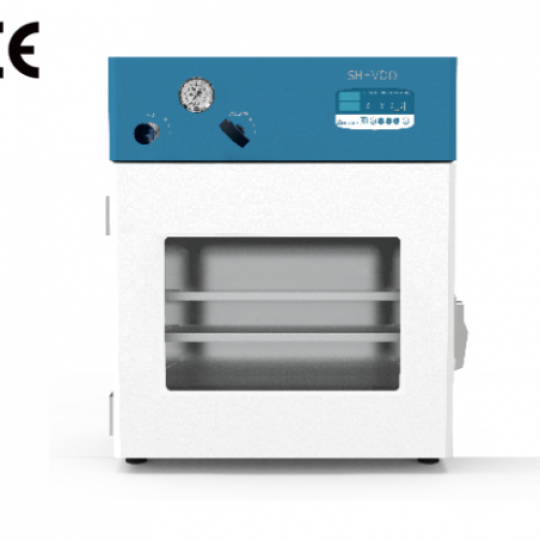

Vacuum Drying Oven
Model: SH-VDO-30NG
Manufacturer: SH SCIENTIFIC - Korea
- Separated vacuum port and vent port
- Du-aluminium Shelves(Excellent heat conductivity)
- Internal observation is possible through View Window
- Excellent temperature uniformity and accuracy
- Stainless Steel Internal Chamber with shelves
- Safety assurance with C.E conformity

Ứng dụng:

Temp Range : Ambient +5℃ to 250℃ (Ambient +9℉ to 482℉)
Time Range  : 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
Vacuum Resistance : 0 to 76 cmHg (0 to 0.1MPa)
Heating Type :Hot Air Jacketed
Temp&Time controller: Microprocess PID Membrane Touch Digital controller
 LED Lamp: DC 24V, 1.2W, LED bar, Waterproof, Cool White
Heater Capa: 990 W
Dimension Internal : 300×300×300mm
Dimension External: 605x550x770mm
Weigh: 69 kg
Capa: 27 L
Material Internal : Stainless Steel
Material External : Steel Plate With Powder Heating Coated
Materal Packing : Silicon Rubber Packing
View Window : Tempered Glass
Aluminium Shelves ; 2 Supplied (4 Maximum)
