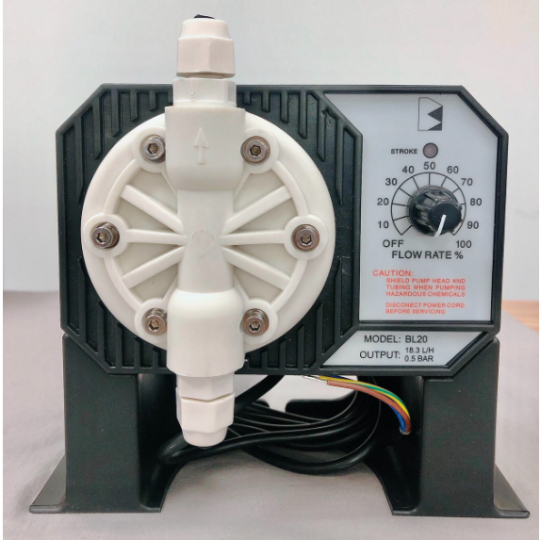

Black Stone Chemical Liquid Metering Pump BL20-2

Black Stone Chemical Liquid Metering Pump BL20-2

Black Stone Chemical Liquid Metering Pump BL20-2

Ứng dụng:

Black Stone Chemical Liquid Metering Pump BL20-2

Flow Rate: 18.3 liters/hour
Pressure: 0.5 bar
Pump Cycle: 120 strokes/minute
Pump Housing: Fiber-reinforced polypropylene
Materials:

  • Flange made of PVDF
  • Pump diaphragm made of PTFE
  • Glass ball valve
  • O-ring made of FPM/FKM
  • Pump tubing made of polyethylene (5 x 8 mm, 7m length)

Self-priming: Maximum height: 1.5 m (5 feet)
Power Supply: BL20-2: 220/240 VAC, 50/60Hz
Maximum Power Consumption: Approximately 200 W
Protection: IP65
Operating Environment: 0 to 50°C (32 to 122°F); max 95% RH (non-condensing)
Dimensions: 194 x 165 x 121 mm
Weight: Approximately 3 kg
